WLB065-092-15-ST - Datasheet
MBA
Category Information

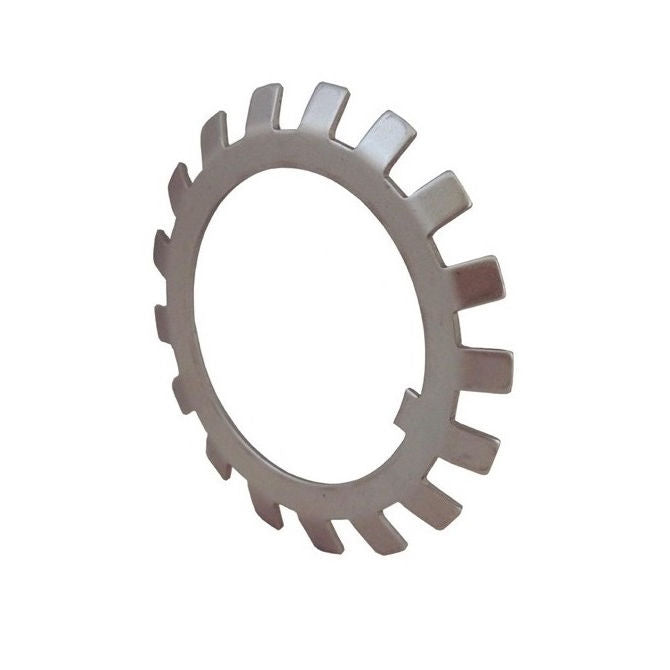

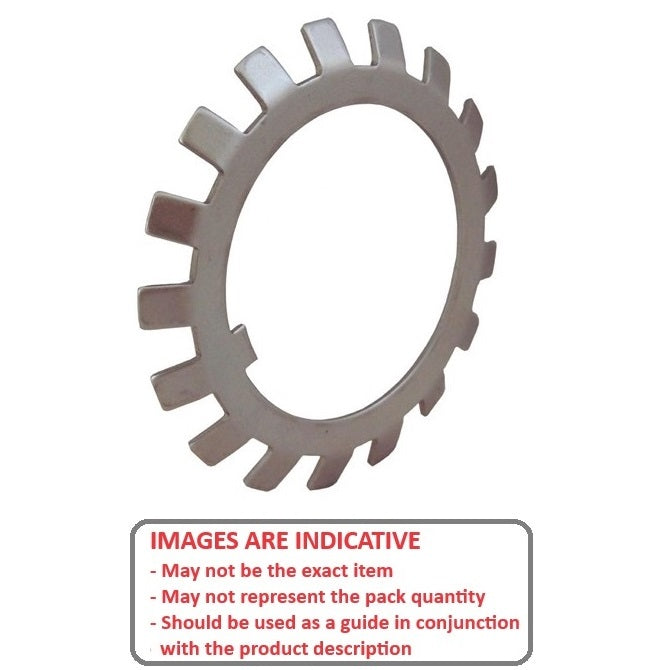

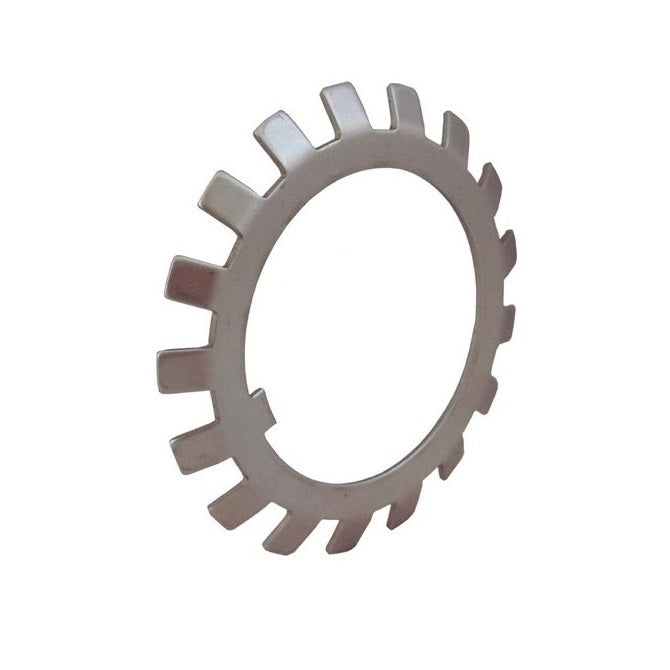

Washers - Lock - Tabbed - for Bearing Locknutsfor Bearing Locknuts Tabbed Lock Washers. This category includes equivalents to AW, W, TW, MB, WH and WT types.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
- For use with bearing lock nuts
Product Data
- Approximate ID (D1)
:
65.00
mm
(Equiv. 2.559 in.) - Approx OD (D5)
92
mm
(Equiv. 3.622 in.) - Tabs 19 Nr.
- Inner Tab Width (E) 8.00 mm
- Outer Tab Width (S) 7.00 mm
- Inner Face (D4) 79.0 mm
- thickness (t) 1.5 mm
- Matching Locknut AN / KM13
- Inner Tab Type Straight ISO 2982
- Series MB / AW-X
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor MB-13
- MB13
