WRE-0650-RD - Datasheet
MBA
Category Information

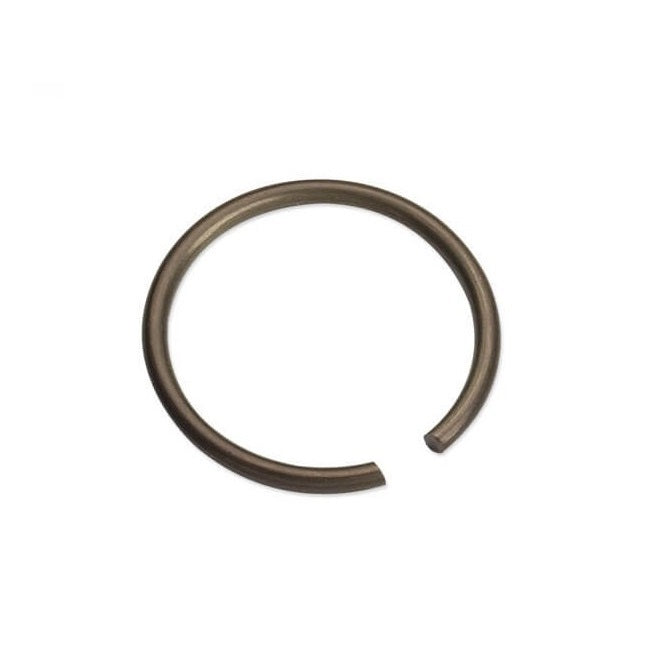

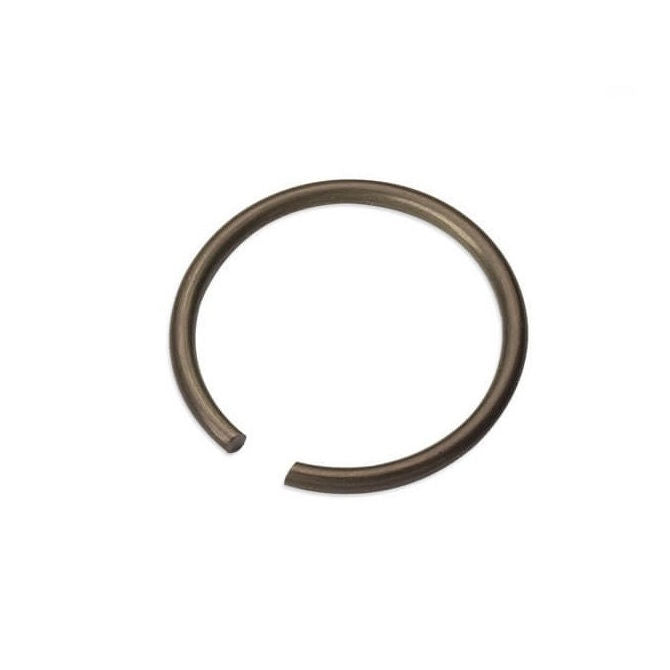

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Shaft Diameter (Ds)
:
65.00
mm
(Equiv. 2.559 in.) - Clip Thickness (T)
3.20
mm
(Equiv. 0.126 in.) - Groove Dia. (Dg)
61.65
mm
+ 0 / - 0.80
(Equiv. 2.427 in.) - Approx. Loose Circlip ID (A) 61.1 mm
- Radial Wall (S) min/max 61.65 mm +/- 0.15
- Groove Width (W) 3.6 mm Min.
- Free Outside Dia (Dr) 67.5
- Section Profile Round Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DRP-065
- DRP065
