MVI-0635-C2 - Datasheet
MBA
Category Information

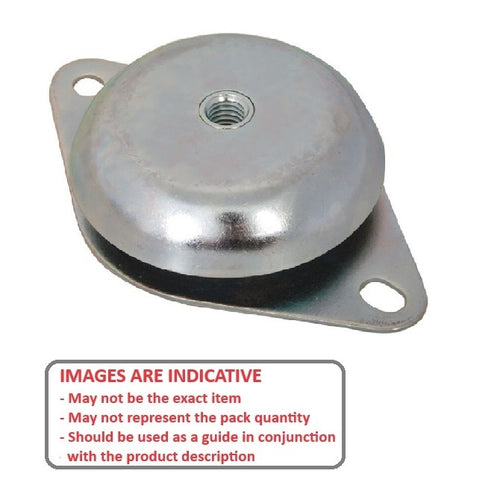

Mounts - Vibration Isolation - Cup Style 2Cup Style 2 Vibration Isolation Mounts. Industrial cupmounts provide excellent protection against severe impact shock, vibration and noise.
- High vibration dampening. Fail safe, rugged interlocking metal and neoprene construction.
- Metal cupmount is cold rolled steel. Low profile compact design. Metal top plate is domed shape to guard against oil contamination.
- High grade neoprene elastomer provides resistance to ozone and oils.
Product Data
- Non-Impact Load : 635 Kg
- Impact Load 408.2 Kg

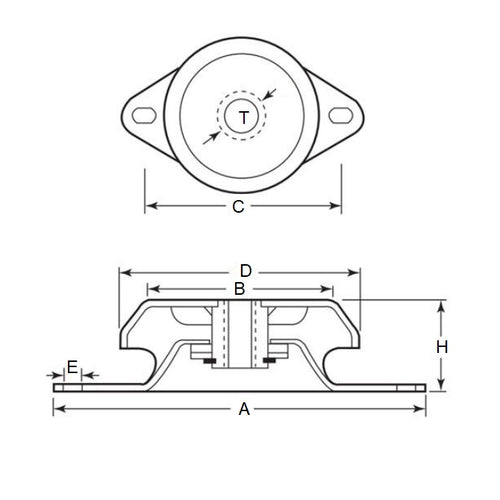

- Mount Diameter (D)
131.76
mm
(Equiv. 5.187 in.) - Height (H) 42.86 mm
- Thread Size 5/8-11 UNC (15.88mm)
- Plate Diameter (B) 101.60 mm
- Bolt Centres (C) 161.93 mm
- Flange Length (A) 195.26 mm
- Bolt Hole (E) 13.97 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- VP-43
- VP43
