FRB-554RS - Datasheet
MBA
Category Information

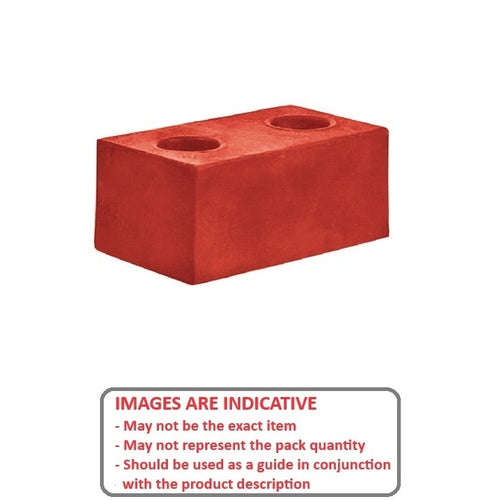

Bumpers - Square and Rectangular - Steel Plated - UrethaneUrethane Steel Plated Square and Rectangular Bumpers. With drilled and counterbored holes for mounting. Urethane bonded to steel plate.

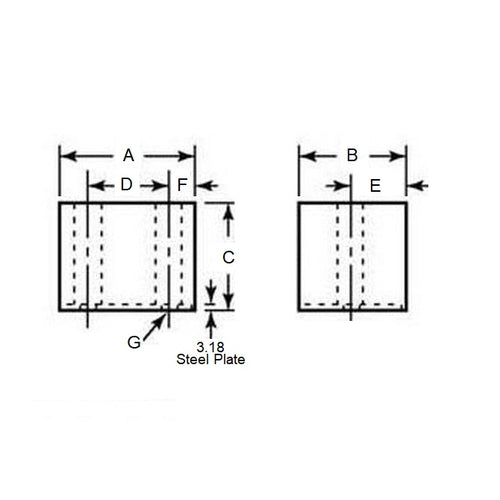

Product Data
- Length (A)
:
63.500
mm
(Equiv. 2.5 in.) - Width (B)
50.800
mm
(Equiv. 2 in.) - Height (C)
50.800
mm
(Equiv. 2 in.) - Distance Between Holes (D) 38.100 mm
- Length Centre Hole (F) 12.700
- Hardness 80A
- No. of Holes 2
- Hole Size (G) 7.925
- Width Centre Hole (E) 25.400 mm
- Material Polyurethane
