RR-444RS - Datasheet

MBA

Category Information

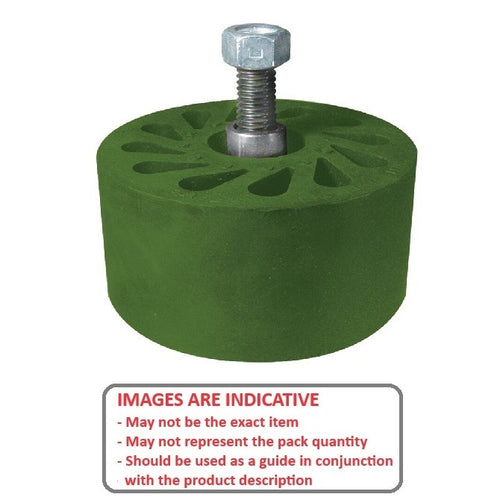

Rollers - Durasoft Stud Mount - Urethane

Urethane Durasoft Stud Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.

  • Designed for use in machines and assembly operations where part movement and protection is needed.
  • Durasoft rollers have a gentle but firm touch.
  • Unique shape of holes adds to their soft but resilient nature.
  • Blue colour may turn a shade of green when exposed to UV lighting

Product Data

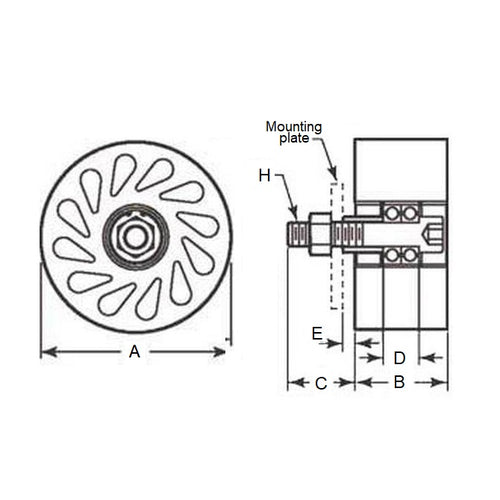

  • Diameter (A) : 63.50 mm
    (Equiv. 2.5 in.)
  • Thread 1/2-13 UNC (12.7mm)
    (Equiv. 0.039 in.)
  • Thread Length (C) 35.814 mm
    (Equiv. 1.41 in.)
  • Bearings Overall Width (D) 19.050 mm
  • E 6.350 mm
  • Mount Height (B) 49.28 mm
  • Durometer Shore A 60
  • Number of Bearings 2
  • Colour Blue
  • Material Urethane
Country of Origin: US
