RR-443RS - Datasheet
MBA
Category Information

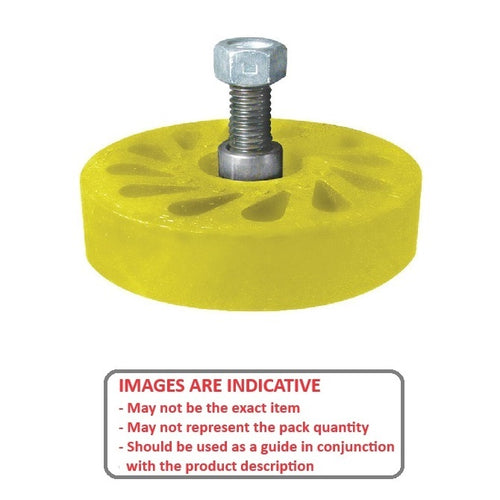

Rollers - Durasoft Stud Mount - UrethaneUrethane Durasoft Stud Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Durasoft rollers have a gentle but firm touch.
- Unique shape of holes adds to their soft but resilient nature.
- Blue colour may turn a shade of green when exposed to UV lighting

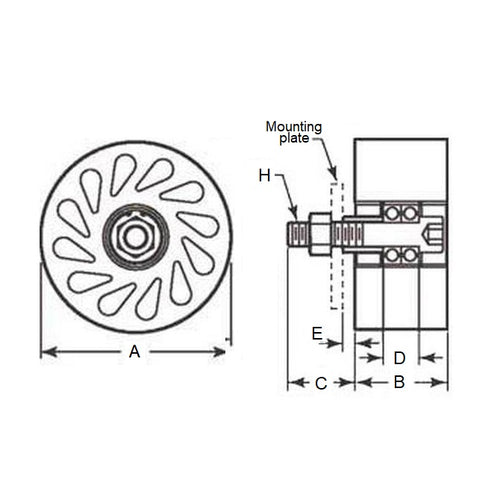

Product Data
- Diameter (A)
:
63.50
mm
(Equiv. 2.5 in.) - Thread 1/2-13 UNC (12.7mm)
- Thread Length (C)
35.814
mm
(Equiv. 1.41 in.) - Bearings Overall Width (D) 19.050 mm
- E 6.350 mm
- Mount Height (B) 49.28 mm
- Durometer Shore A 35
- Number of Bearings 2
- Colour Yellow
- Material Urethane
Product Compliance and Data
Additional Resources
Cross References
- KaVo RR-443
- RR443
