RR-283RS - Datasheet
MBA
Category Information

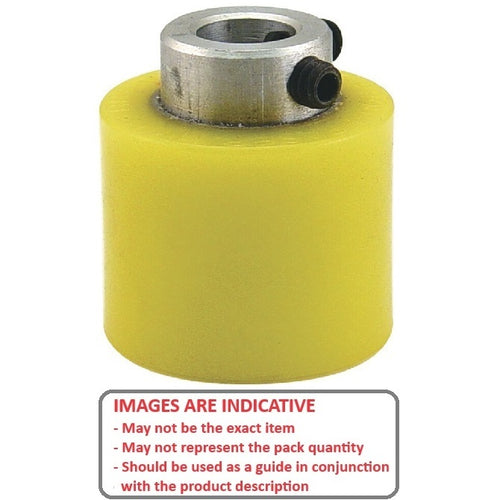

Rollers - Solid Shaft Mount - Coloured UrethaneColoured Urethane Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Blue colour may turn a shade of green when exposed to UV lighting
Product Data

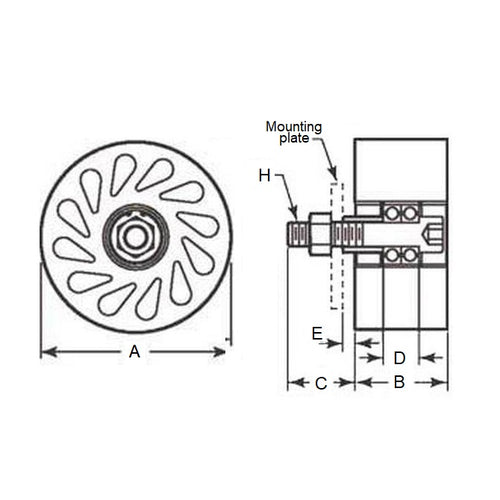

- Diameter (A) : 63.50 mm
- Length (B) 49.28 mm
- Bore (E) 19.08 - 19.20 mm
- Hub Projection (C) 12.700
- Durometer 35
- Colour Yellow
- Material Urethane
Product Compliance and Data
Additional Resources
Cross References
- 2475K69-35A
- 2475K6935A
