RR-272RS - Datasheet
MBA
Category Information

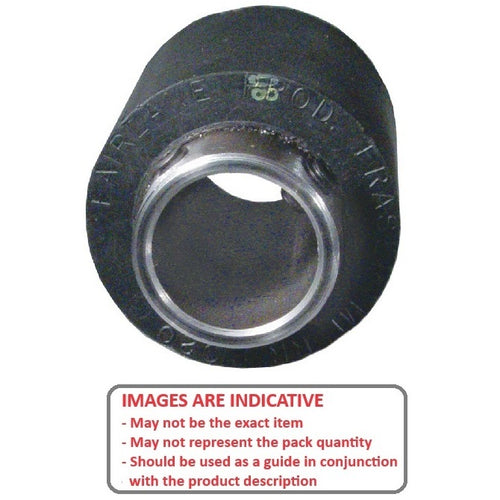

Rollers - Solid Shaft Mount - Black NeopreneBlack Neoprene Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
Product Data
- Diameter (A)
:
63.50
mm
(Equiv. 2.5 in.) - Length (B)
49.28
mm
(Equiv. 1.94 in.) - Bore (E)
25.43 - 25.55
mm
(Equiv. 1.001 in.) - Hub Projection (C) 12.700
- Durometer 60
- Material Neoprene Rubber
