CCF935RS - Datasheet

MBA

Product Data

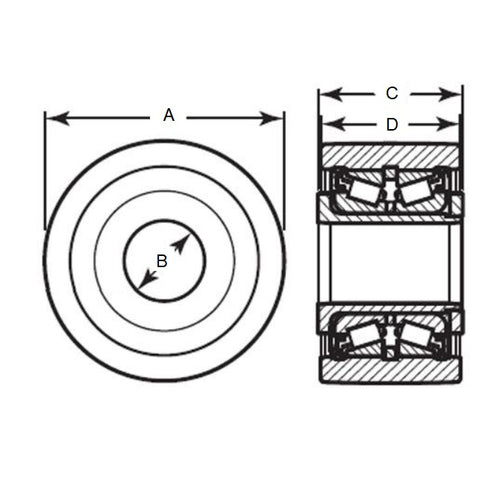

• Diameter (A) : 63.50 mm
• Overall Width (C) 39.68 mm
• Bore (B) 19.050 mm
• Width (D) 38.100 kg
• Dyanmic Radial Load 3460.000 kg
• Dynamic Thrust Load 2070.000
• Material Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

• Pressure Roller Information

Cross References

• Reid Tool® CCF-935
• CCF935
