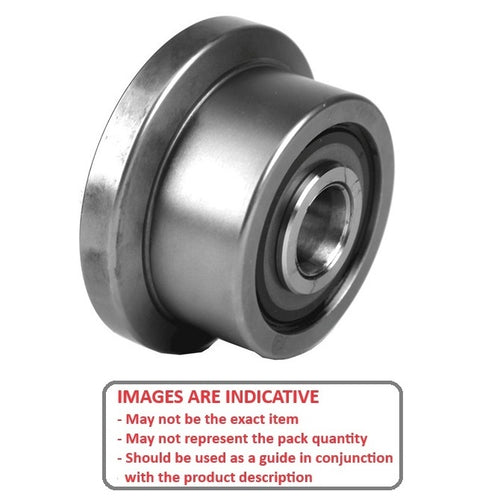

CCF945RS - Datasheet

MBA

Product Data

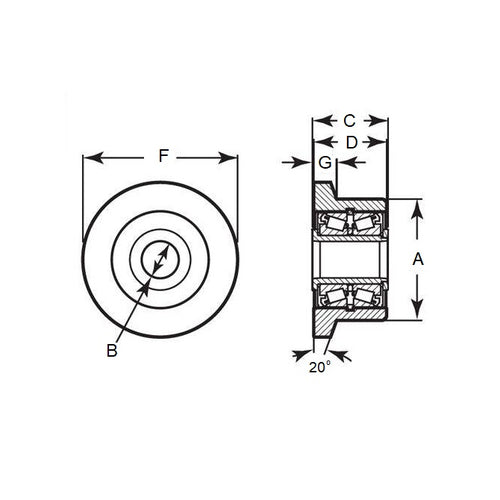

• Diameter (A) : 63.500 mm
  (Equiv. 2.5 in.)
• Overall Width (C) 39.675 mm
  (Equiv. 1.562 in.)
• Bore (B) 19.050 mm
  (Equiv. 0.75 in.)
• Width (D) 38.100 mm
• Flange Diameter (F) 80.950 mm
• Flange Width (G) 12.700 mm
• Dyanmic Radial Load 3460.000 kg
• Dynamic Thrust Load 2070.000 kg
• Material Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

• Pressure Roller Information

Cross References

• 6321K26
• CCF945
• CCF-945
