COL-06350-102-19-HG-CS - Datasheet
MBA
Category Information

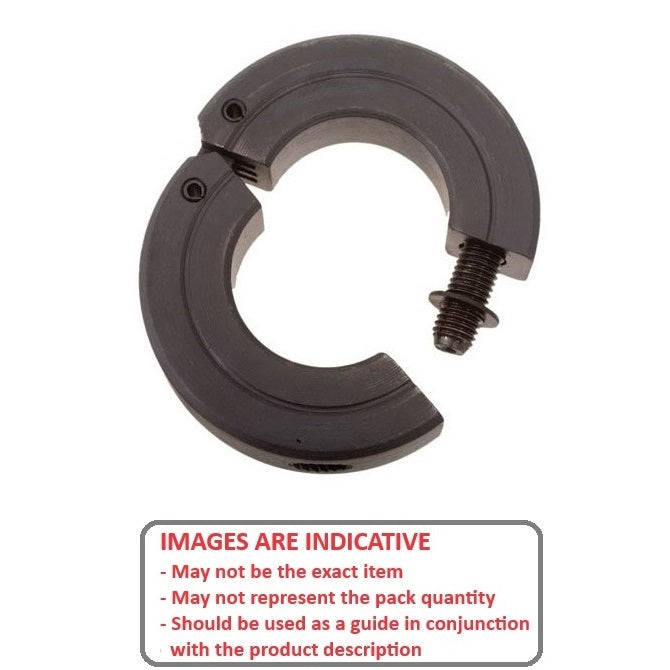

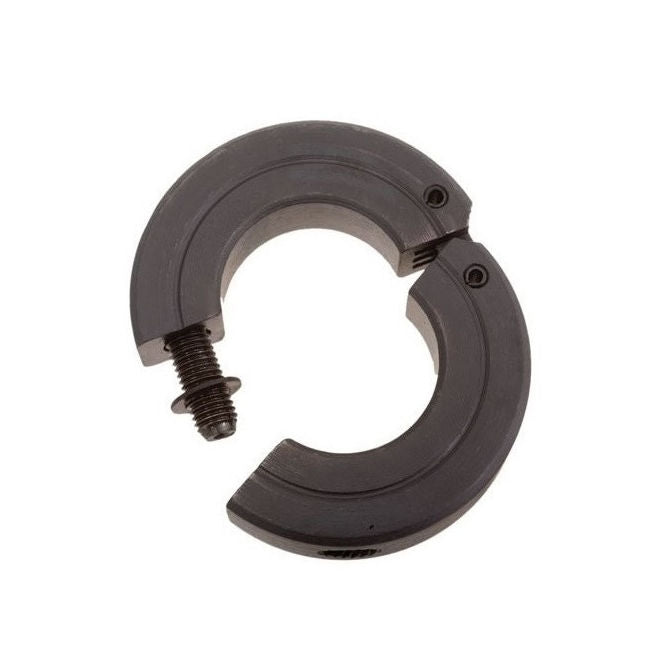

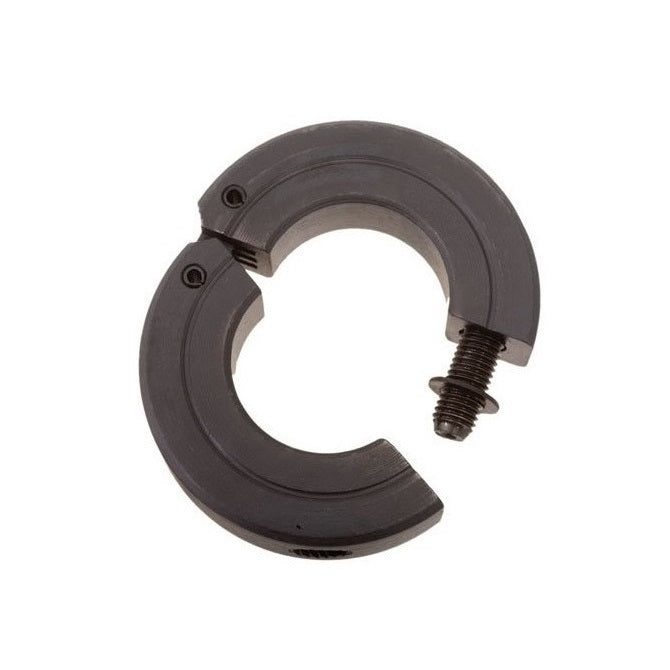

Collars - Shaft - Hinged - SteelSteel Hinged Shaft Collars. Precision machined. Convenient easy-to-assemble design. Steel 12L14 (9SMn Pb36)
- Same axial load handling capabilities as standard two piece collars.
- Captive clamp screw eliminates lost screws.
- The collars have a smooth I.D., O.D. & sides with no protruding pins or screws.
- Easily Machinable / Open Completely.
- Non-marring / Use on hardened shafts / Use on tubing / Use on split hubs.
Product Data

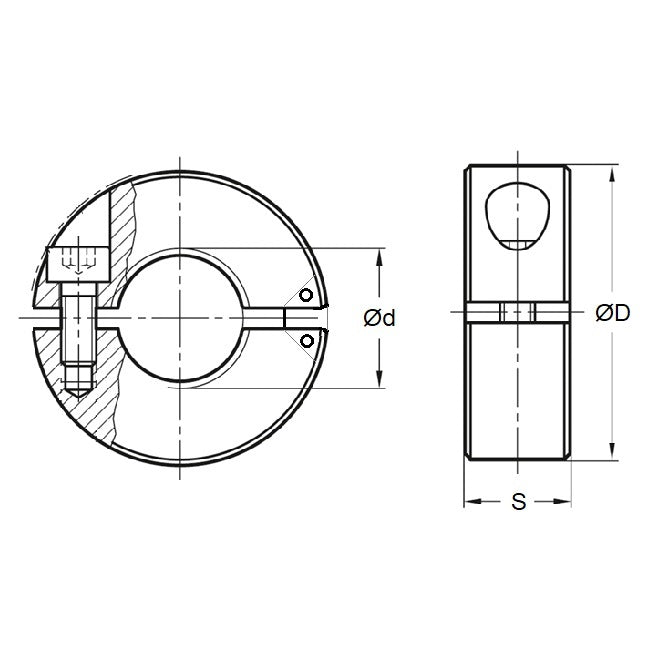

- Suitable Shaft Size (d)
:
63.500
mm
(Equiv. 2.5 in.) - Outside Diameter (D)
101.60
mm
(Equiv. 4 in.) - Overall Width (S)
19.1
mm
(Equiv. 0.752 in.) - Screw Size 5/16-24 UNF
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- CTC415
- CTC-415
