RR-1507RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Male Thread - Standard

Standard Cylindrical Male Thread Bumpers. Also see Mounts - Buffers

    Product Data

    • Diameter (A) : 63.500 mm
      (Equiv. 2.5 in.)
    • Height (B) 63.500 mm
      (Equiv. 2.5 in.)
    • Thread 3/8-16 UNC (9.53mm)
    • Thread Length 22.225 mm
    • End Flat with radiused Edges
    • Durometer 80A
    • Colour Black
    • Material Polyurethane
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      View full details

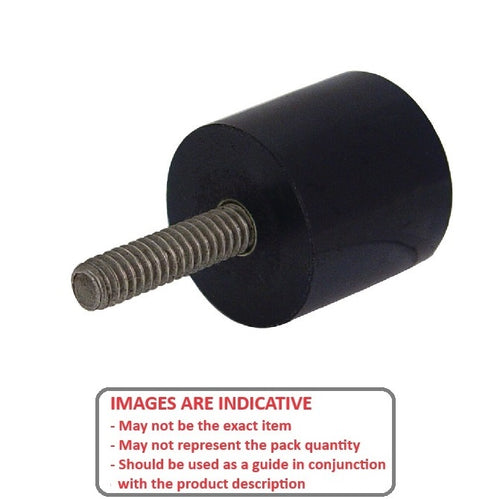

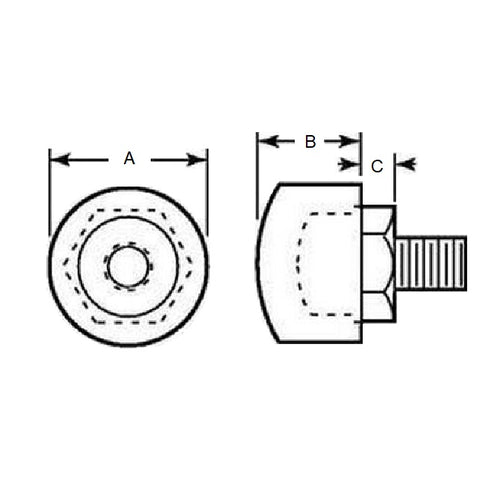

      RR-1507RSDiagramRR-1507RSImage
