RR-1506RS - Datasheet

MBA

Category Information

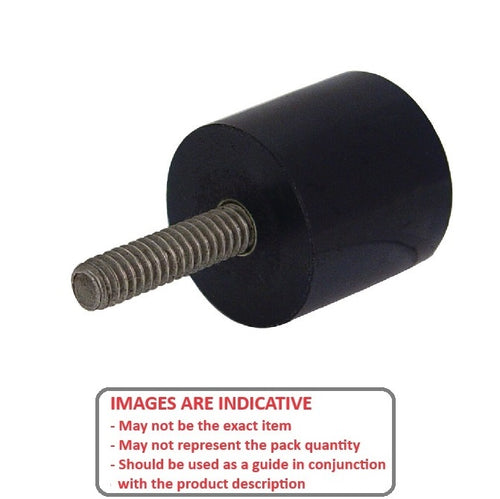

Bumpers - Cylindrical Male Thread - Standard

Standard Cylindrical Male Thread Bumpers. Also see Mounts - Buffers

  • Rubber body and a threaded metal stud, designed to absorb impact, dampen vibrations, and reduce noise.
  • The male thread allows for easy installation by screwing directly into a pre-tapped hole or by securing a nut on the opposite side of the surface.
  • These are used in applications like machinery, vehicles, and industrial equipment to protect surfaces and components from damage.

Product Data

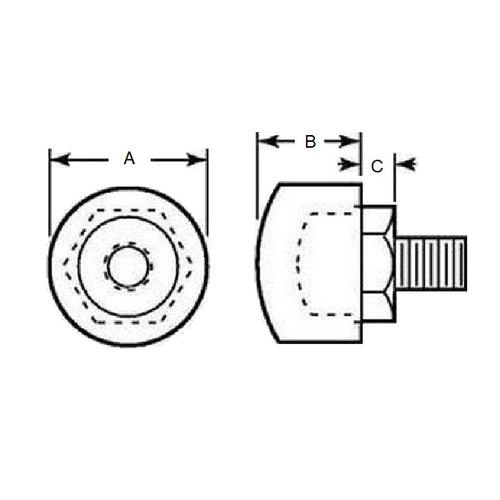

  • Diameter (A) : 63.500 mm
    (Equiv. 2.5 in.)
  • Height (B) 63.500 mm
    (Equiv. 2.5 in.)
  • Thread 3/8-16 UNC (9.53mm)
  • Thread Length 22.225 mm
  • End Flat with radiused Edges
  • Durometer 60A
  • Colour Black
  • Material Polyurethane
Country of Origin: US
