IDC-163RS - Datasheet

MBA

Category Information

Idler Shafts

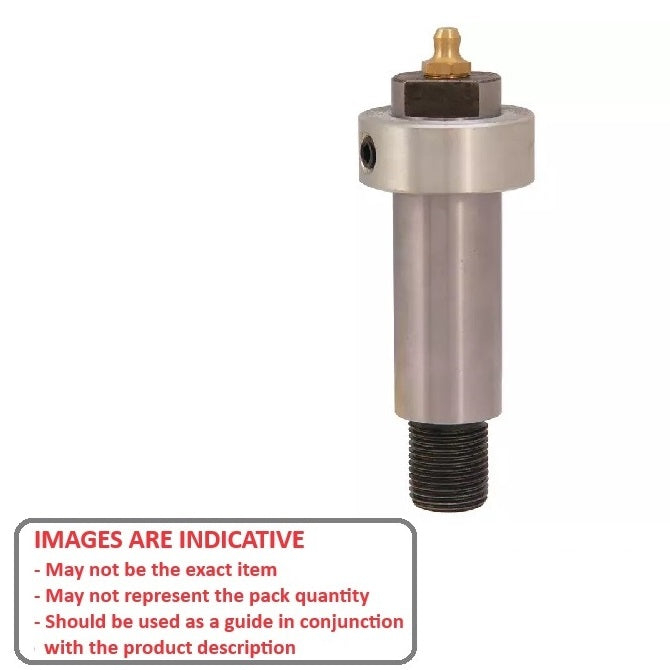

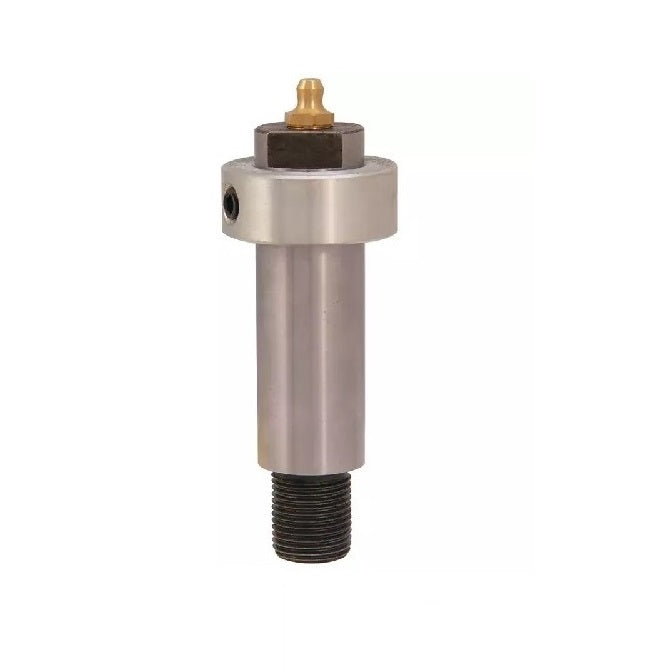

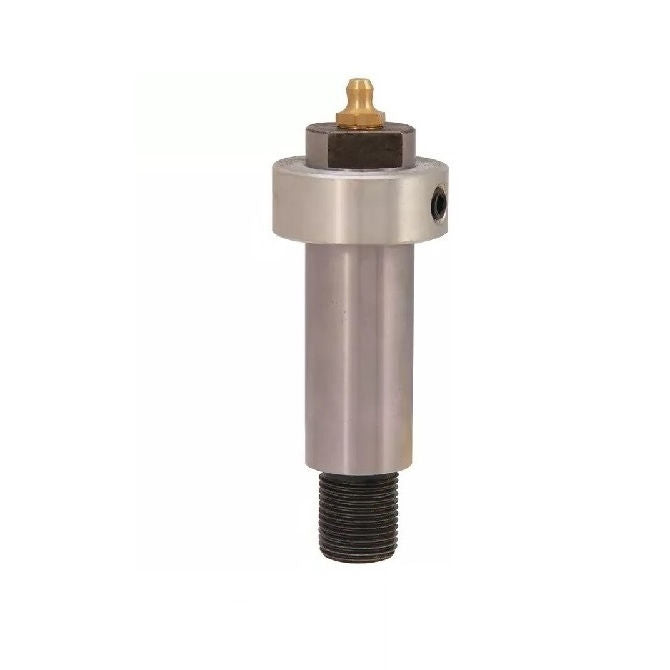

Idler Shafts. Ready made precision ground idler shafts.

  • An expanded range may be available on special order. Please enquire.
  • Internal grease hole can be accessed by drilling if required
  • Use with your idler pulleys.
  • Can be used with the idler tensioners listed on this site or use in your own design.

Product Data

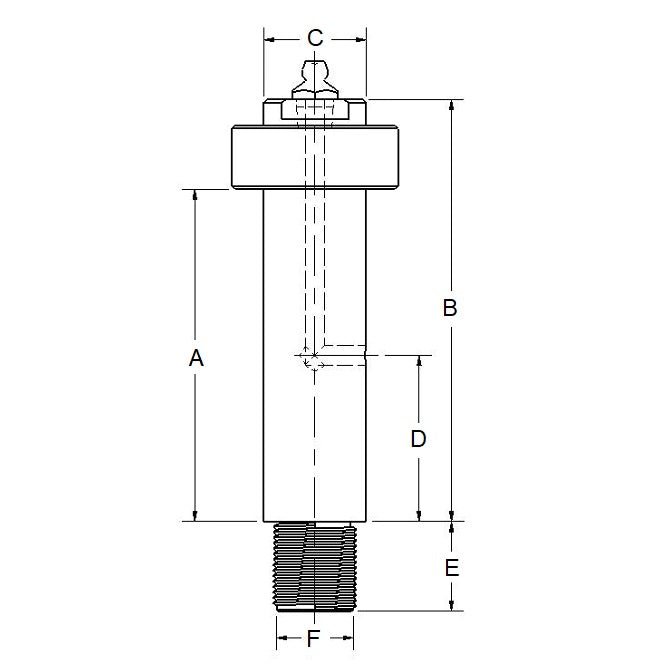

  • Shaft Length (A) : 63.500 mm
    (Equiv. 2.5 in.)
  • Diameter (C) 25.400 mm
    (Equiv. 1 in.)
  • Thread Size 3/4-10
  • Overall Length (B) 79.375 mm
  • Base to grease hole depth (D) 28.575 mm
  • Thread Length (E) 22.225 mm
  • Approx Weight 0.42 Kg
  • Material Carbon Steel
Country of Origin: US
