MAG-CP-064-05-05-SD - Datasheet

MBA

Category Information

Magnets - Cup Assemblies Stud

Cup Assemblies Stud Magnets. This is the main category in this series

    Product Data

    • Diameter (A) : 63.50 mm
      (Equiv. 2.5 in.)
    • Thickness (B) 4.76 mm
      (Equiv. 0.187 in.)
    • Thread Size 5/16-18 UNC
    • Thread Length 25.40 mm
    • Holding Value 4.54 kg
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • IM-54
      • IM54
      View full details

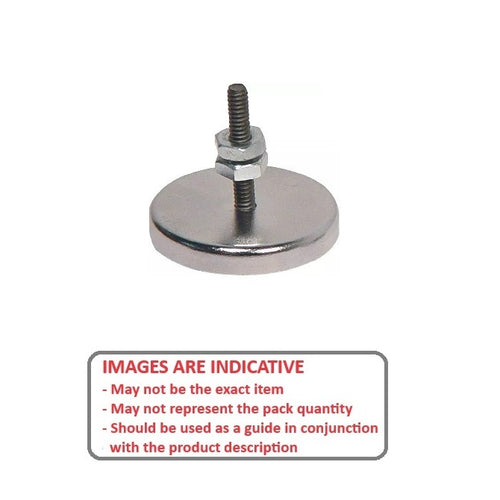

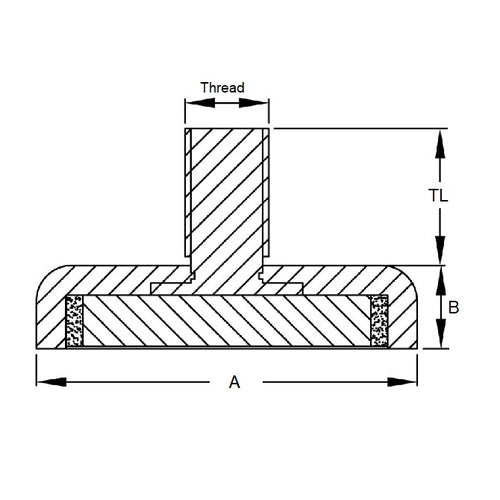

      MAG-CP-064-05-05-SDDiagramMAG-CP-064-05-05-SDImage
