DR-9502-60UR-BPC - Datasheet
MBA
Category Information

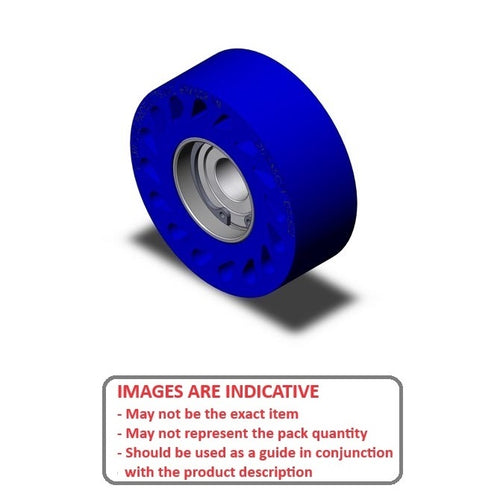

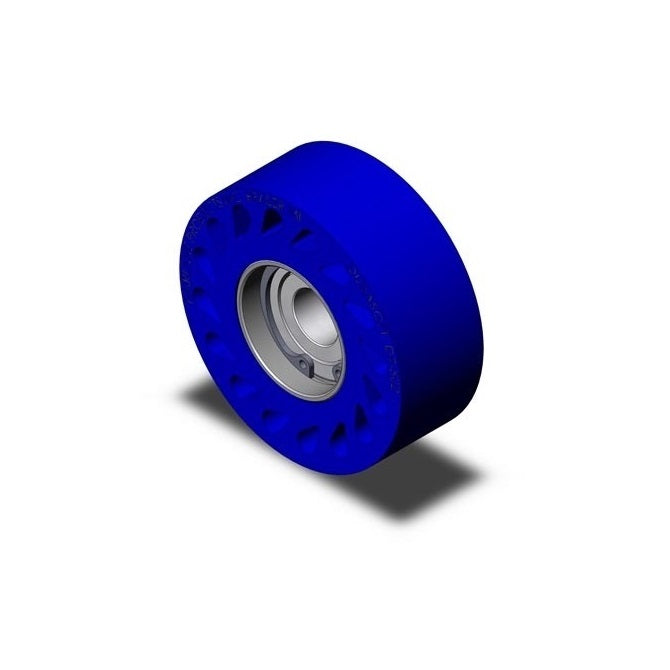

Rollers - Durasoft Shaft Mount - Urethane With Ball BearingUrethane With Ball Bearing Durasoft Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Durasoft rollers have a gentle but firm touch.
- Unique shape of holes adds to their soft but resilient nature.
- Blue colour may turn a shade of green when exposed to UV lighting
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

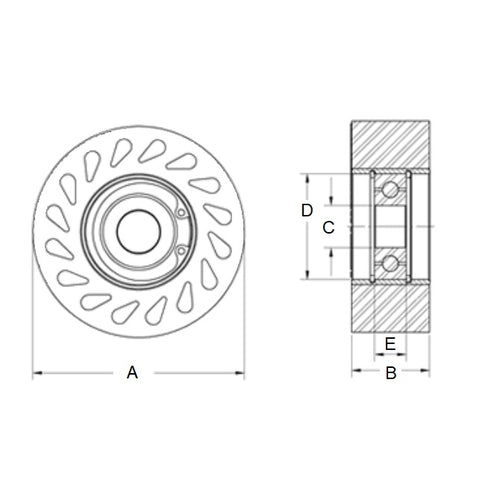

- Diameter (A)
:
63.5
mm
(Equiv. 2.5 in.) - Length (B)
23.34
mm
(Equiv. 0.919 in.) - Hub Projection (C) None mm
- Bore (C) 12.700 mm + 0 / - 0.008
- Durometer Shore A 60
- Bearing Width (E) 9.525 mm
- Recess Diameter (D) 28.575 mm + 0 / - 0.008
- Number of Bearings 1
- Colour Blue
- Material Polyurethane
