P-030G-062-150P-AL-G-079 - Datasheet
MBA
Category Information

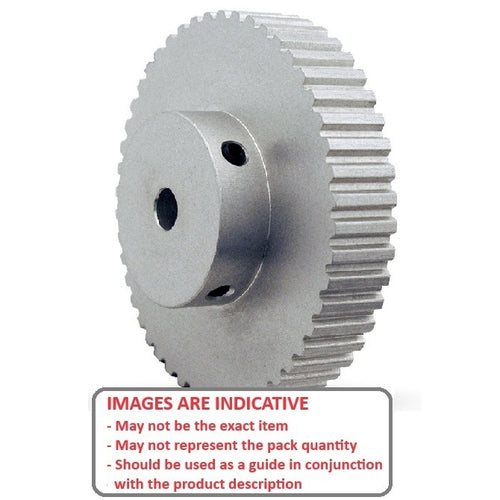

Pulleys - Metric Timing - 3.000mm Pitch - GT - 15mm Wide Aluminium15mm Wide Aluminium GT 3.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit GT 3.000mm Pitch Timing Belts 15mm Wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- Finsihed through bore
- Set screw locking
Product Data
- Number of Teeth : 62
- Max Belt Width
15.00
mm
(Equiv. 0.591 in.) - Bore (d)
7.938
mm
(Equiv. 0.313 in.) - Bore Type Finished
- Locking Type Set Screw
- Type 3
- Pitch Dia. (PD) 59.18 mm
- Overall Length 28.2 mm
- Hub Diameter (HD) 31.8
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 62-3P15-6A4
- 623P156A4
