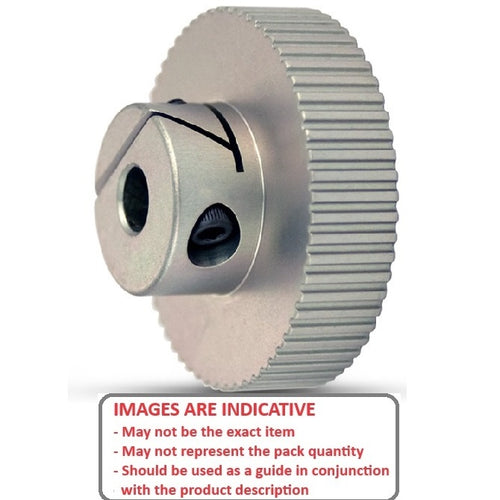

P-030G-060-090P-AL-E-080 - Datasheet

MBA

Category Information

Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic - EZ-Lock

EZ-Lock Metallic 9mm Wide GT 3.000mm Pitch Metric Timing. Timing Pulleys to suit GT 3.000mm Pitch Timing Belts 9mm Wide. Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Aluminium Alloy
  • EZ-Lock hub clamps to the shaft with a socket head cap screw
  • Cap screw is supplied with the pulley

Product Data

  • Number of Teeth : 60
  • Max Belt Width 9.00 mm
    (Equiv. 0.354 in.)
  • Bore (d) 8.000 mm
    (Equiv. 0.315 in.)
  • Bore Type Finished
  • Locking Type EZ-Lock Hub

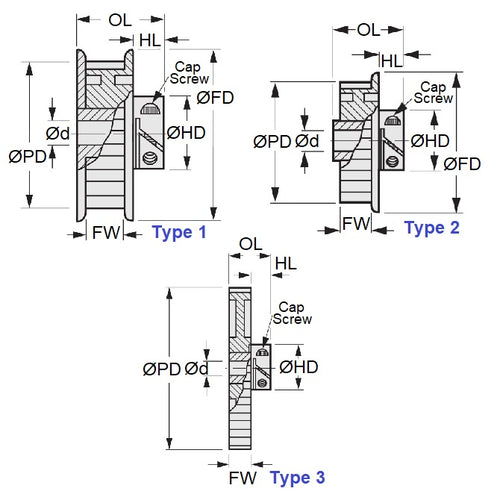

  • Type 3
  • Pitch Dia. (PD) 57.27 mm
  • Overall Length 22.2 mm
  • Hub Diameter (HD) 25.4
  • Material Aluminium
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 60-3P09MIA8
  • 603P09MIA8
  • A6D53M060NF0908
