P-020G-060-060FF-AL-G-064 - Datasheet
MBA
Category Information

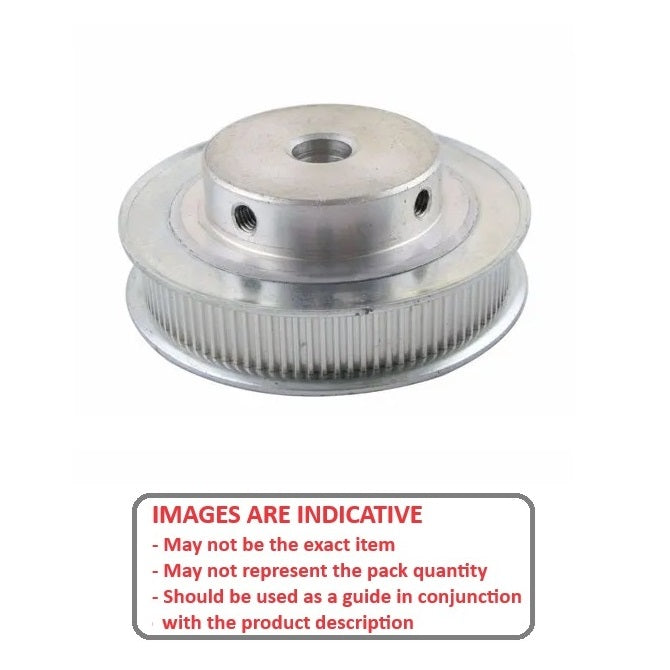

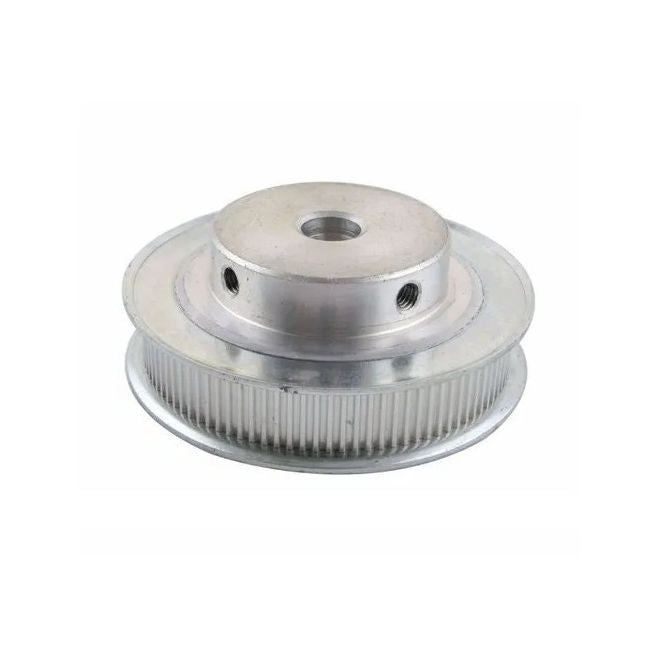

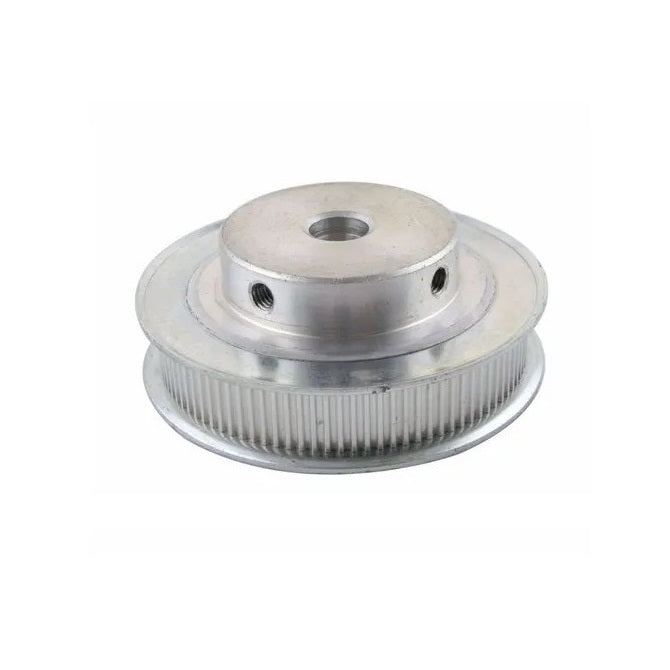

Pulleys - Metric Timing - 2.000mm Pitch - GT - 6mm Wide - Through BoreThrough Bore 6mm Wide GT 2.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit 2mm Pitch GT Timing Belts 6mm Wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- Set Screw and EZI-LOK Hubs
Product Data
- Number of Teeth : 60
- Max Belt Width
6.00
mm
(Equiv. 0.236 in.) - Bore (d)
6.350
mm
(Equiv. 0.25 in.) - Bore Type Finished
- Locking Type Set Screw

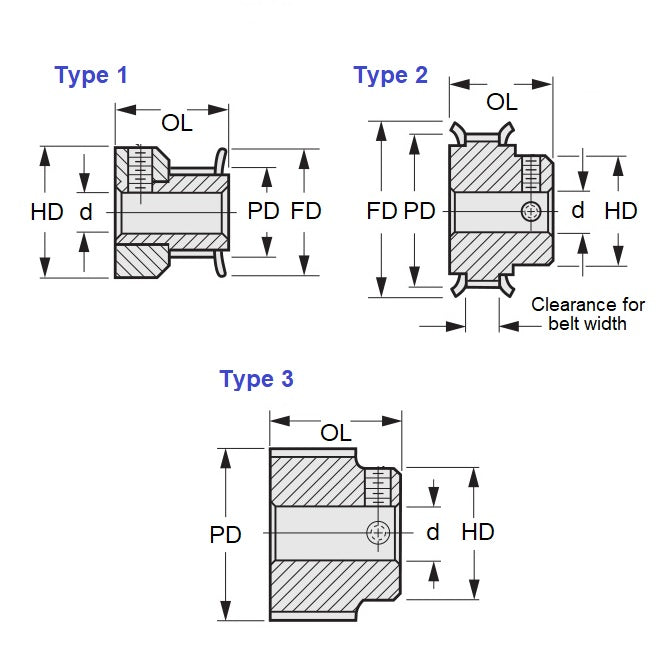

- Type 2
- Pitch Dia. (PD) 38.18 mm
- Flange Diameter (FD) 43.9 mm
- Overall Length 19.5 mm
- Hub Diameter (HD) 31.4
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- 3764N118
- Gates 60-2P06-6FA3
- A6A51-060DF0608
- A6A51060DF0608
- 602P066FA3
