P-100A-060-160A - Datasheet
MBA
Category Information

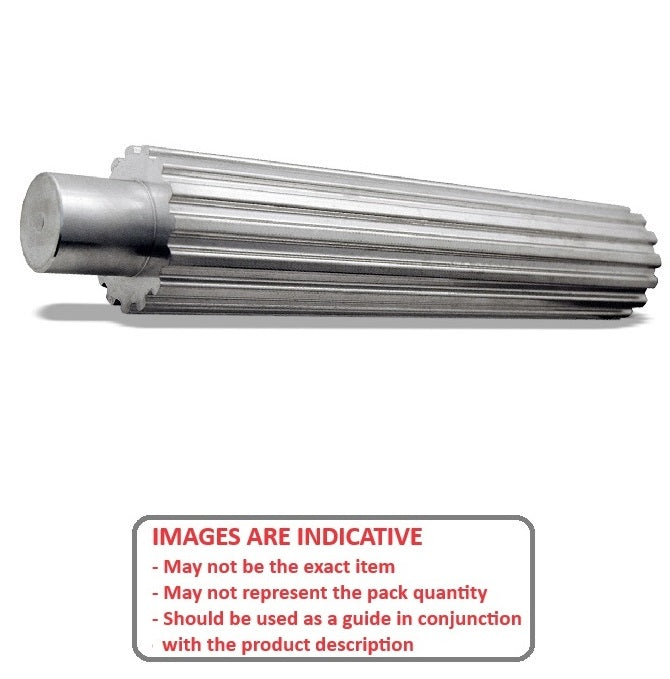

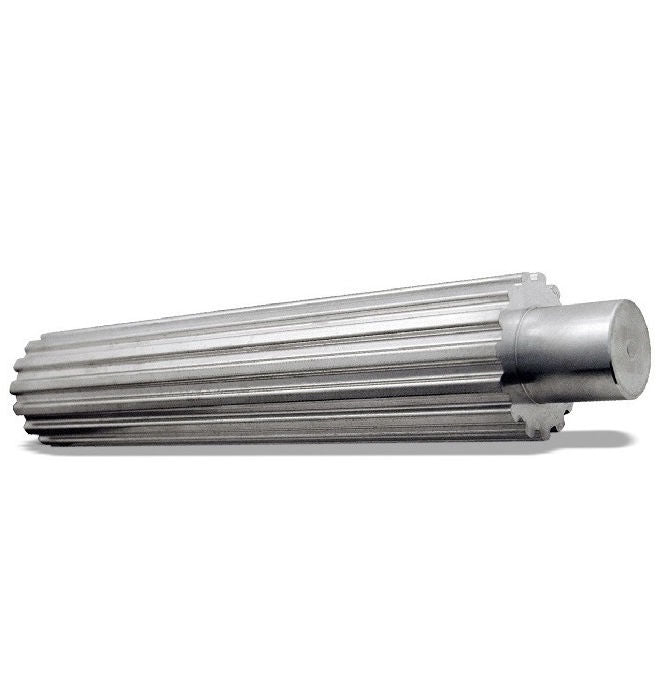

Pulleys - Metric Timing Stock - 10.000mm Pitch - AT10 AluminiumAT10 Aluminium 10.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 60
- Min. Usable Length (L) 160.0 mm
- Pitch Diameter (PD) 190.90 mm
- Outside Diameter (OD) 189.10 mm
- Shank Diameter (D1) 25.40 mm
- Shank Length (Sl) 25.4 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates® 60AT10-PS160A
- 60AT10PS160A
