MNP-609-R - Datasheet

MBA

Category Information

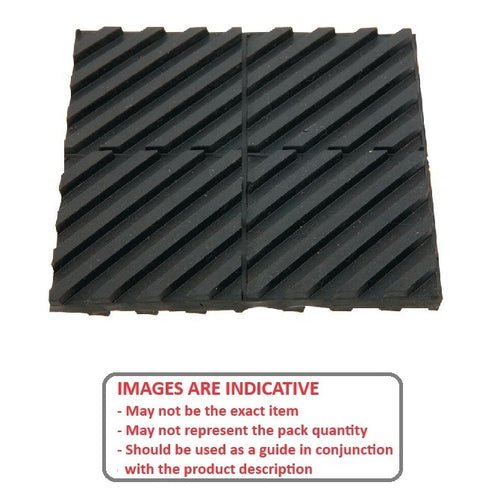

Mounts - Neoprene Pads - Ribbed Pattern

Ribbed Pattern Neoprene Pads Mounts. Provides a versatile, inexpensive way to isolate shock, vibration and reduce noise levels.

  • Simply lift the machine and slide the pads under each foot.
  • Provides firm footing to floor and equipment.
  • Ribbed pads can be stacked with the ribs at 90o to each other or nested with the ribs in the grooves.
  • Scored in 50.8mm squares for easy cutting.
  • Oil resistant neoprene rubber

Product Data

  • Size : 609.6 x 609.6 mm
    (Equiv. 24 in.)
  • Load Range 1.0 - 25.0 psi
  • Thickness 7.938 mm
    (Equiv. 0.313 in.)
  • Material Neoprene Rubber
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PM3
  • PM-3
