MLM-6030-152B-222C-S4-L-090 - Datasheet
MBA
Category Information

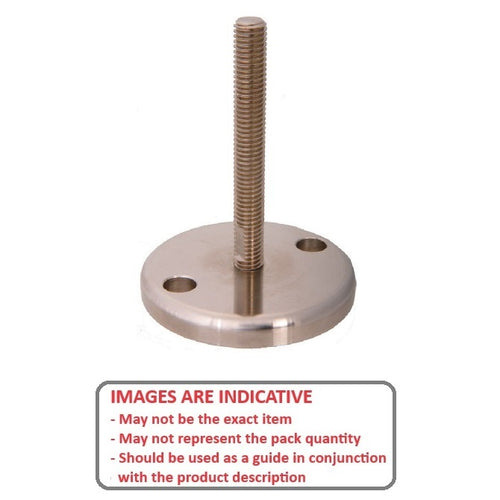

Mounts - Levelling Studded - Hygienic - Anchoring - Low Profile Low SwivelLow Profile Low Swivel Anchoring Hygienic Levelling Studded Mounts. Levelling adjusters. ANSI 304 stainless steel provides high corrosion resistance. Rounded polished base for fluid run-off during washdown applications.
- An expanded range may be available on special order. Please enquire.
- Operating temperature -20 to 100o C.
- Wrench flats in thread still allow for full use of threaded section
- 1o articulating swivel
Product Data

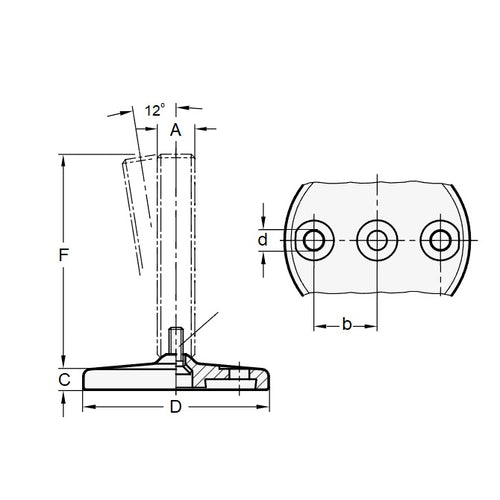

- Thread Size (A) : 7/8-9 UNC (22.23mm)
- Base Diameter (D)
89.9
mm
(Equiv. 3.539 in.) - Foot Height (C)
11.9
mm
(Equiv. 0.469 in.) - Thread Length (F) 152.4 mm
- Base Height (E) 11.9 mm
- Overall Height 164.3 mm
- Load Rating 6030 Kg
- 1
- Distance Thread to Bolt (b) 32.00 mm
- Lag Hole Diameter (d) 12.700 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- SX-138
- SX138
- MLM6030152B222CS4L
- MLM6030222C152S4L
