MSM-159C-152-S4-ALPHY-H110 - Datasheet
MBA
Category Information

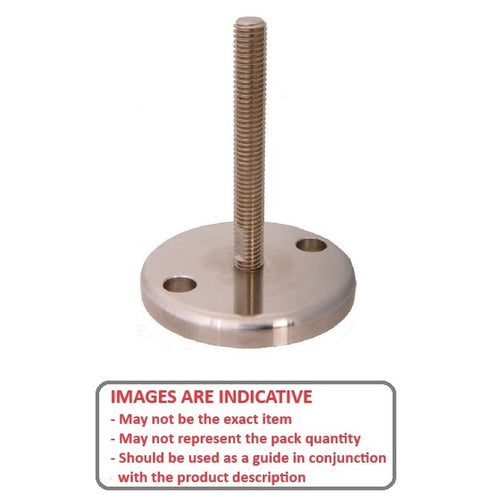

Mounts - Levelling Studded - Hygienic - Anchoring - Low Profile High SwivelLow Profile High Swivel Anchoring Hygienic Levelling Studded Mounts. Levelling adjusters. ANSI 304 stainless steel provides high corrosion resistance. Rounded polished base for fluid run-off during washdown applications.
- An expanded range may be available on special order. Please enquire.
- Operating temperature -20 to 100o C.
- Wrench flats in thread still allow for full use of threaded section
- 12o articulating swivel
- 2 bolt holes in base allows for anchoring

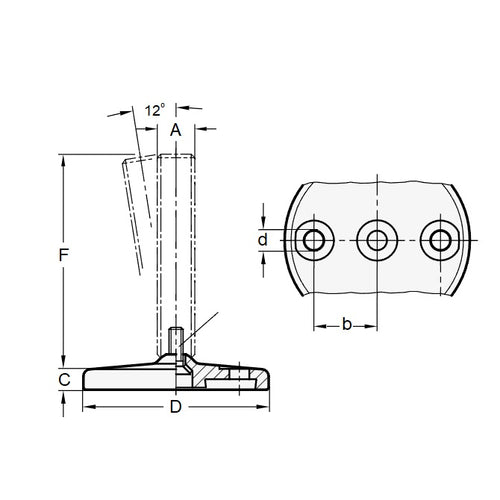

Product Data
- Thread Size (A) : 5/8-11 UNC (15.88mm)
- Base Diameter (D)
110.0
mm
(Equiv. 4.331 in.) - Foot Height (C)
11.9
mm
(Equiv. 0.469 in.) - Thread Length (F) 152.4 mm
- Base Height (E) 11.9 mm
- Overall Height 164.3 mm
- Load Rating 6030 Kg
- 12
- Distance Thread to Bolt (b) 43.94 mm
- Lag Hole Diameter (d) 12.700 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- SX-158
- SX158
- MLM6030159C152LS4H
- MLM6030152A159CS4H
