MSM-191C-203-S4-ALPHY-H090 - Datasheet
MBA
Category Information

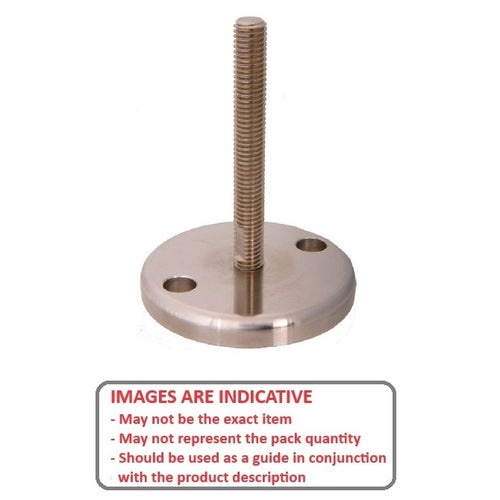

Mounts - Levelling Studded - Hygienic - Anchoring - Low Profile High SwivelLow Profile High Swivel Anchoring Hygienic Levelling Studded Mounts. Levelling adjusters. ANSI 304 stainless steel provides high corrosion resistance. Rounded polished base for fluid run-off during washdown applications.
- An expanded range may be available on special order. Please enquire.
- Operating temperature -20 to 100o C.
- Wrench flats in thread still allow for full use of threaded section
- 12o articulating swivel
- 2 bolt holes in base allows for anchoring
Product Data

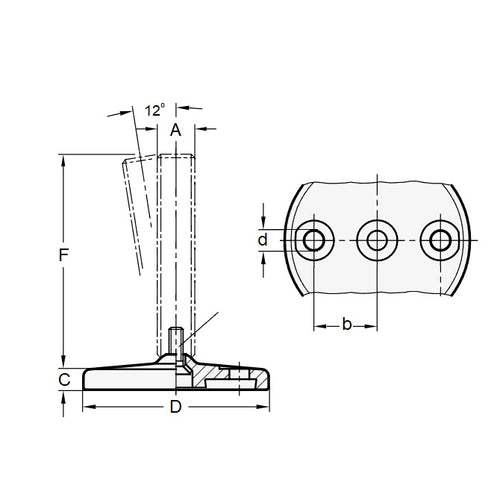

- Thread Size (A) : 3/4-10 UNC (19.05mm)
- Base Diameter (D)
89.9
mm
(Equiv. 3.539 in.) - Foot Height (C)
11.9
mm
(Equiv. 0.469 in.) - Thread Length (F) 203.2 mm
- Base Height (E) 11.9 mm
- Overall Height 215.1 mm
- Load Rating 6030 Kg
- 12
- Distance Thread to Bolt (b) 32.00 mm
- Lag Hole Diameter (d) 12.700 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- SX-153
- SX153
- MLM6030191C203S4H
- MLM6030203B191CS4H
