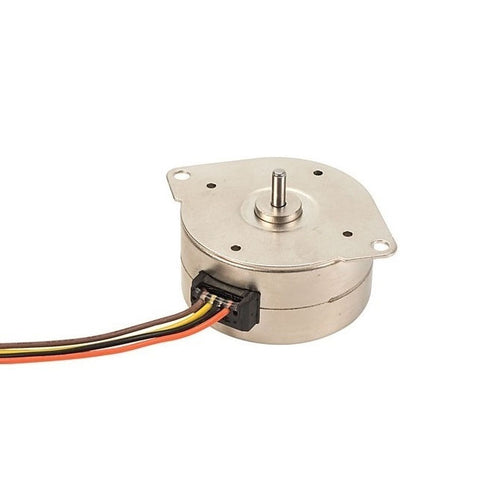

MSTP-600-028-64 - Datasheet
MBA
Category Information
Hobby - Stepper MotorsStepper Motors Hobby. Small light weight stepper motor for your hobby or light duty projects
- Products in this category are leftover from the days when we had a hobby supply shop.
- All items are priced to quit.
- If you would like to purchase the remaining stock of any category, we are open to all offers.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Holding Torque : 600-1200 g.cm
- Shaft Configuration Flange Mount 3mm Hardened Steel Shaft
- Step Angle 64 Steps 5.625 °
- Voltage 5 V DC
- Phases 4
- Coil Resistance 10 Ohm
- Frequency 100 Hz
- DC Resistance at 25 Deg C 50 Ohm +/- 3.5
- Diameter 28 mm
- Idle In Tranction Frequency >600 Hz
- Idle Out of Traction Frequency >1000 Hz
- In Traction Torque >34.3 N.m
