G048B-060-D32-048-064-A-P - Datasheet
MBA
Category Information

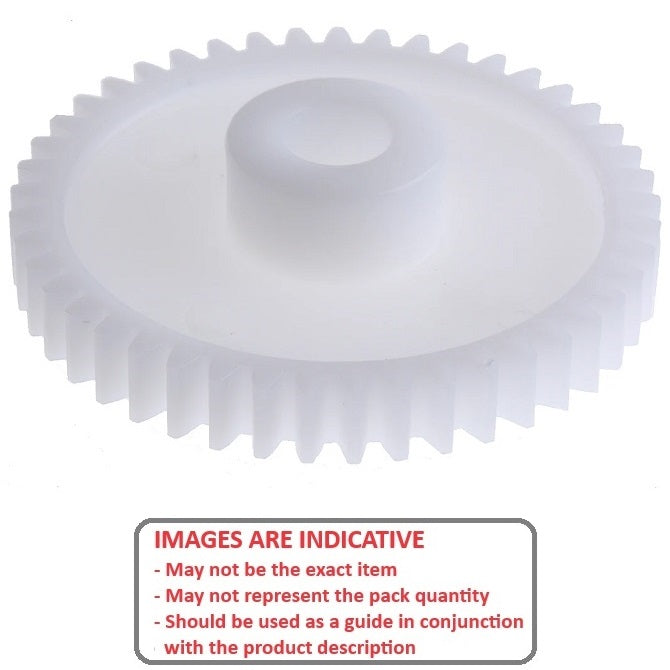

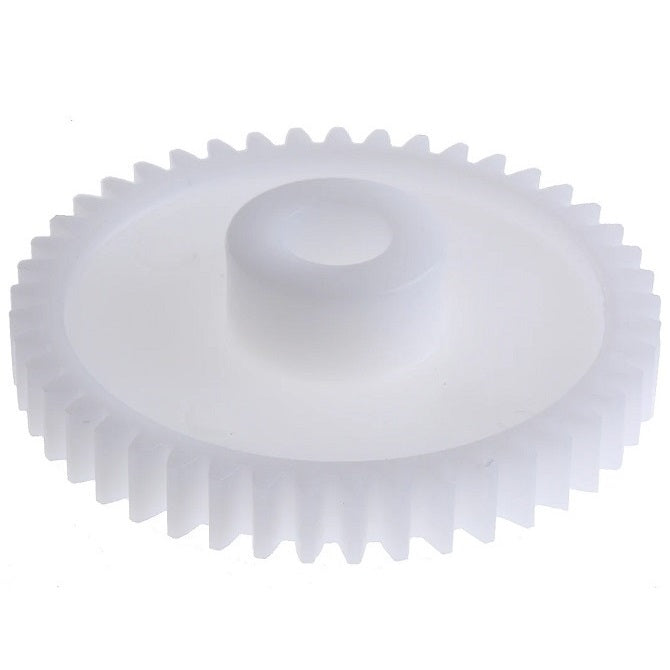

Gears - Spur - Hubbed - 32DP - 20 Degree - Plastic - PlainPlain Plastic 20 Degree 32DP Hubbed Spur. PCD in mm = No. of Teeth x 0.79375 (1/32 in.). 20 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 32 teeth
- 32 Diametrical Pitch. Approx 2.49mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 60
- Pitch Circle Diameter (PD)
47.63
mm
(Equiv. 1.875 in.) - Bore (d)
6.350
mm
(Equiv. 0.25 in.) - Outside Diameter (OD) 49.225 mm
- Face Width (FW) 4.76 mm
- Type Hubbed
- Hub Diameter (D1) 11.10 mm
- Hub Projection (HL) 6.35 mm
- Locking Method Pin Hub - No Set Screw
- Quality AGMA Q9 - Moulded
- Material Acetal
Product Compliance and Data
Additional Resources
Cross References
- G048B60D32048064AP
