Miniature Bearings Australia

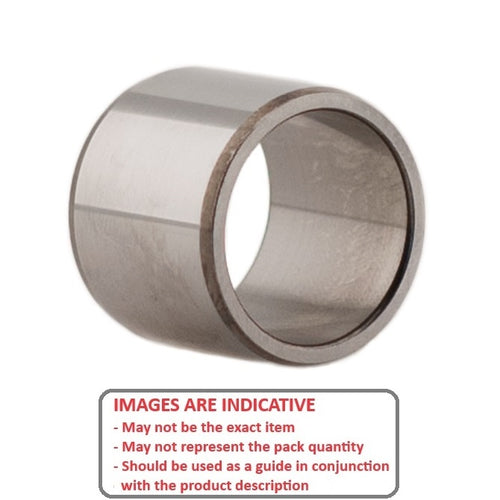

IR-0600-0700-0455 - Datasheet

MBA

Category Information

Bearings - Needle Roller Inner Rings

Needle Roller Inner Rings Bearings. Hardened sleeves for needle roller bearings.

  • Needle roller inner rings are high strength, high precision sleeves, that are used as a high quality surface on which a needle roller bearing can to run.
  • Pair them with a suitable needle roller where the bearing ID matches the inner ring OD.
  • They can be used to sleeve a worn shaft, or in applications where it is desirable to run the bearing on an easily replacebale surface.

Product Data

  • Inside Diameter : 60.000 mm
    (Equiv. 2.362 in.)
  • Outside Diameter 70.000 mm
    (Equiv. 2.756 in.)
  • Length (L) 45.50 mm
    (Equiv. 1.791 in.)
  • Brand IKO
  • Material Chrome Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • IKO LRT607045
  • Misumi LRT607045
  • Nachi LRT-607045
View full details
