KF120M-60-FIT-WBL - Datasheet
MBA
Category Information

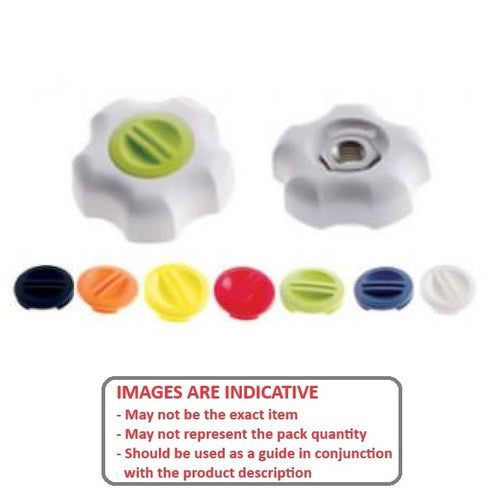

Knobs - Thumb - For Hex Head ScrewFor Hex Head Screw Thumb Knobs. These plastic knobs fit hex head bolts or set screws, not socket cap screws.
- An expanded range may be available on special order. Please enquire.
- To fit Hex Head bolts or Set Screws Screws (Not included)
- Screw secured in hex recess inside the knob with a twist turn plastic cap
- Made From Plastic
Product Data
- Suitable Hex Screw Thread : M12

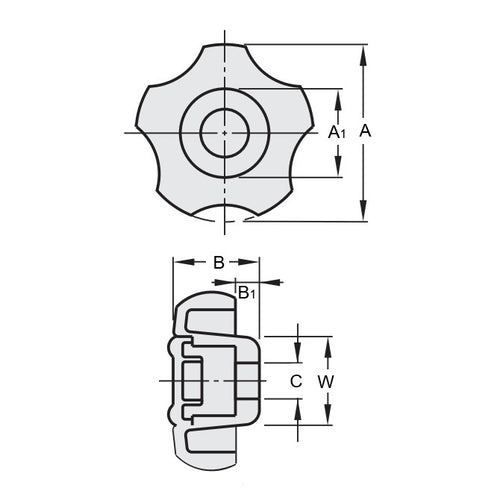

- Knob Diameter (A)
60.0
mm
(Equiv. 2.362 in.) - Knob Thickness (B)
24.0
mm
(Equiv. 0.945 in.) - Knob / Cap Colour White / Blue
- Style Fit Own Screw
- Screw Hex AF 19 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- KF120M60FITBL
