CFB060-45-120M-R60 - Datasheet

MBA

Category Information

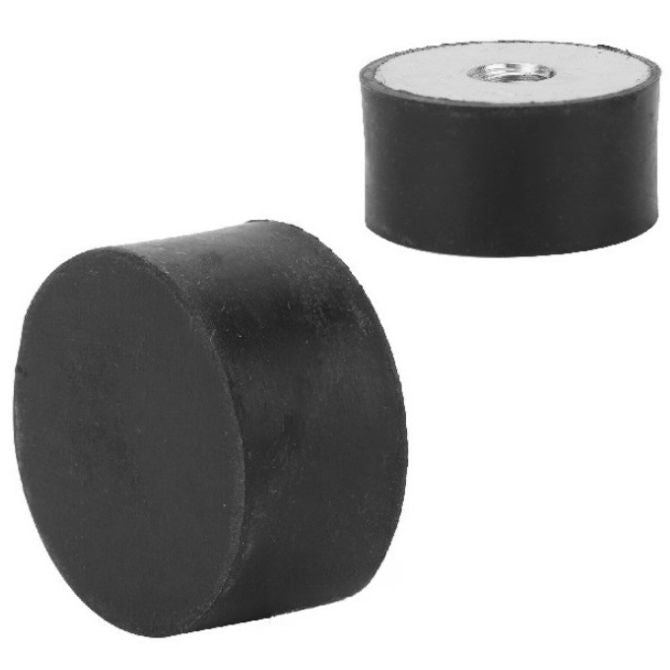

Mounts - Buffer - Female

Female Buffer Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.
  • Also see Bumpers

Product Data

  • Nom. Body Diameter (D) : 60.0 mm
    (Equiv. 2.362 in.)
  • Body Height (H) 45.0 mm
    (Equiv. 1.772 in.)
  • Thread Size M12x1.75
  • Shore Hardness 60
  • Compression Load 515 Kg (lbs)
  • Deflection 11.3 mm
  • Configuration Female to Blank
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • 6045FFB1260
  • 6045FFB12-60
