Miniature Bearings Australia
CFB060-45-120M-R45 - Datasheet
MBA
Category Information

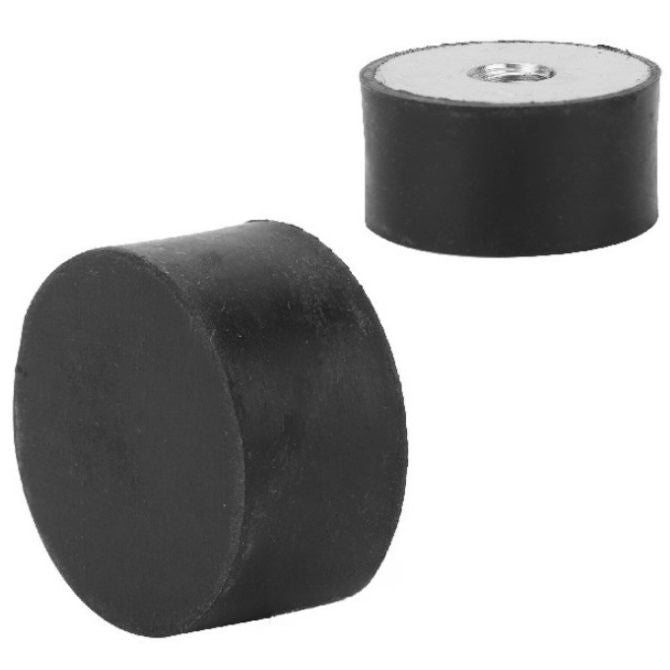

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D)
:
60.0
mm
(Equiv. 2.362 in.) - Body Height (H)
45.0
mm
(Equiv. 1.772 in.) - Thread Size M12x1.75
- Shore Hardness 45
- Compression Load 347 Kg (lbs)
- Deflection 11.3 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 6045FFB12-45
- 6045FFB1245
