Miniature Bearings Australia
CFB060-40-120M-R70 - Datasheet
MBA
Category Information

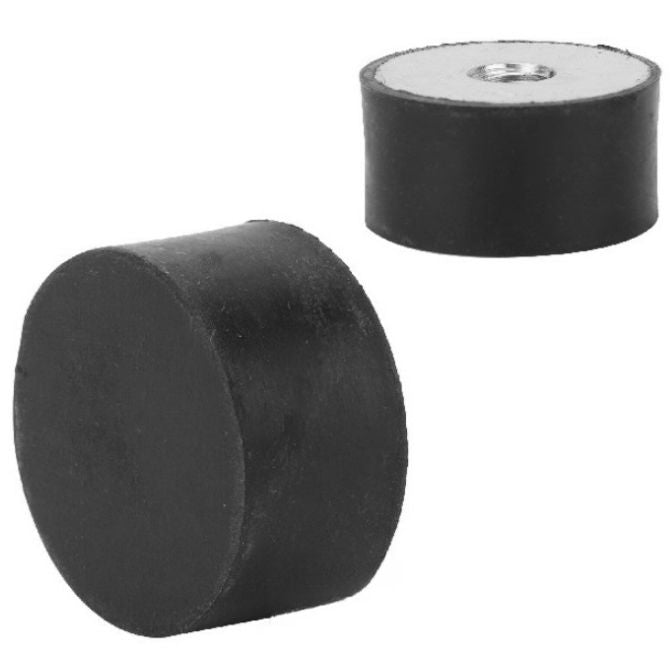

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D)
:
60.0
mm
(Equiv. 2.362 in.) - Body Height (H)
40.0
mm
(Equiv. 1.575 in.) - Thread Size M12x1.75
- Shore Hardness 70
- Compression Load 780 Kg (lbs)
- Deflection 10.0 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 6040FFB1270
- 6040FFB12-70
