CMF060-40-100M-R60 - Datasheet
MBA
Category Information
Mounts - Bobbin - Male to FemaleMale to Female Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

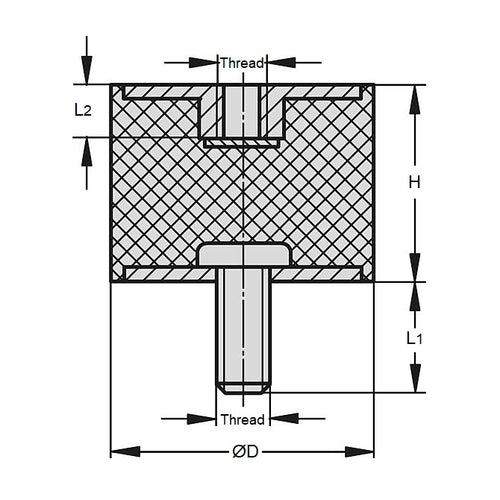

- Nom. Body Diameter (D) : 60.0 mm
- Body Height (H) 40.0 mm
- Thread Size M10x1.5
- Shore Hardness 60
- Thread Length/Depth (L1/L2) 25.0 / 12.0 mm
- Compression Load 188 (402) Kg (lbs)
- Deflection 3.5 mm
- Configuration Male to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 6040MF25-60
- 6040MF2560
