CMF060-35-120M-R60 - Datasheet
MBA
Category Information

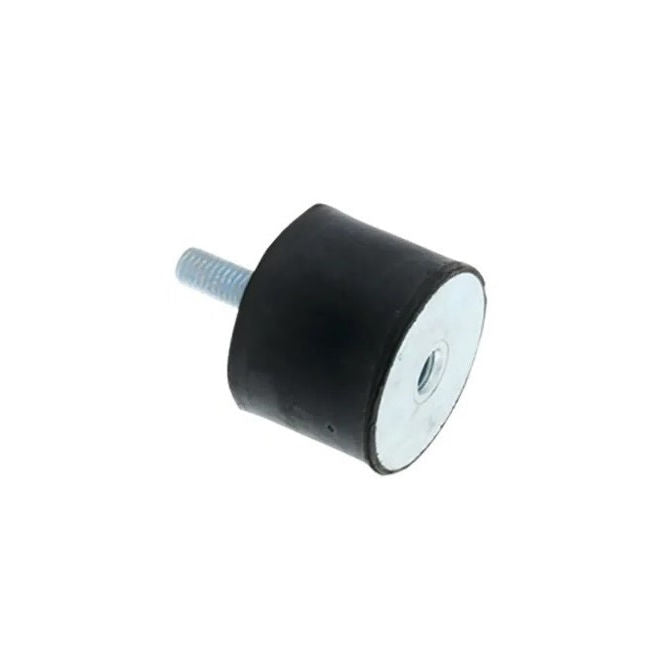

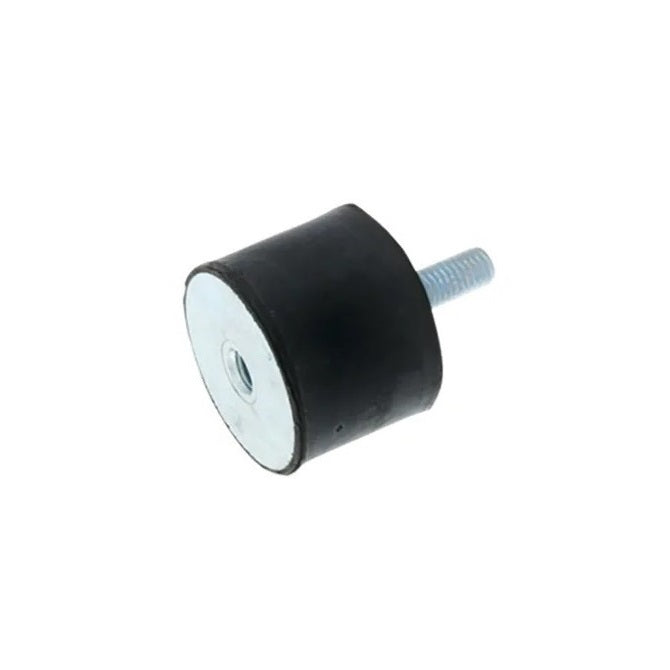

Mounts - Bobbin - Male to FemaleMale to Female Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data
- Nom. Body Diameter (D)
:
60.0
mm
(Equiv. 2.362 in.) - Body Height (H)
35.0
mm
(Equiv. 1.378 in.) - Thread Size M12x1.75
- Shore Hardness 60
- Thread Length/Depth (L1/L2) 25.0 / 12.0 mm
- Compression Load 25 (54) Kg (lbs)
- Deflection 3.1 mm
- Configuration Male to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- AVI 6035MF25-60-M12
- 6035MF2560M12
