CFF060-35-120M-R60 - Datasheet
MBA
Category Information
Mounts - Bobbin - FemaleFemale Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data

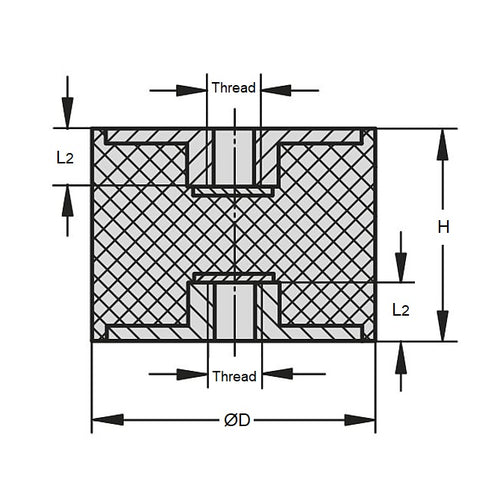

- Nom. Body Diameter (D) : 60.0 mm
- Body Height (H) 35.0 mm
- Thread Size M12x1.75
- Shore Hardness 60
- Compression Load 260 (556) Kg (lbs)
- Deflection 3.1 mm
- Configuration Female to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 6035FF12-60
- 6035FF1260
