REM-060-R-CT - Datasheet
MBA
Category Information

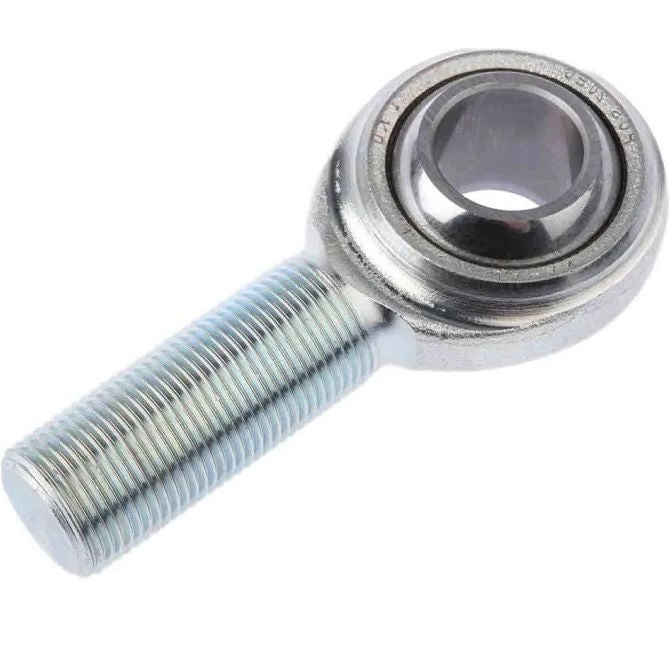

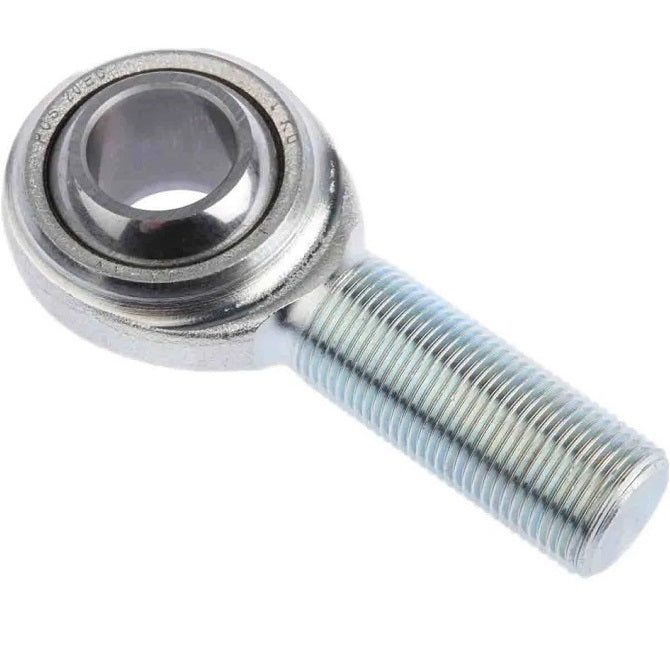

Rod Ends - Male - Steel - Tempered Steel PTFE LinedTempered Steel PTFE Lined Steel Male Rod Ends. Imperial and Metric. Forged tempered steel. Rolled thread. Surface galvanised. Also known as Heim Joints. Nylon - ptfe - glass compound race.
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

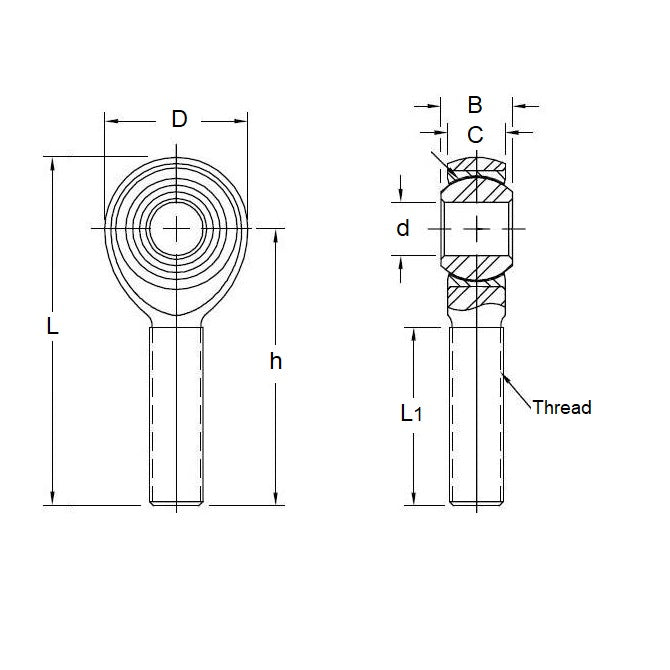

Product Data
- Eye Size (d1)
:
6
mm
(Equiv. 0.236 in.) - Overall Length (L)
46.500
mm
(Equiv. 1.831 in.) - Thread Size M6x1.0 Right
- Min. Thread Length (l2) 36.00 mm
- Head Width (W) 6.70 mm
- Eye Width (W1) 9.00 mm
- Head Diameter (D) 20.00 mm
- Centre Height (l1) 36.00 mm
- Grease Nipple No
- Material Tempered Steel with PTFE
Product Compliance and Data
Additional Resources
Cross References
- Misumi E-GZW6
- EGZW6
