ES-0600-0600-055-S4 - Datasheet
MBA
Category Information

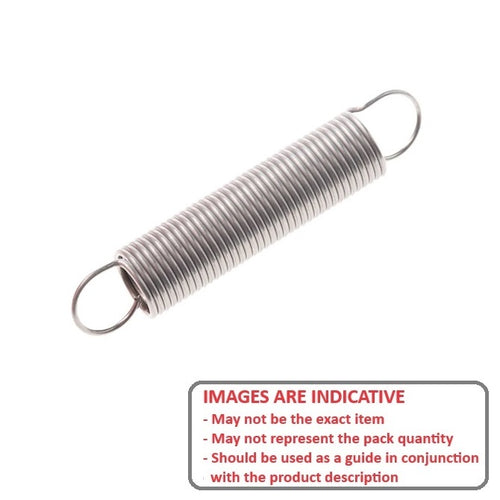

Springs - Extension - Stainless SteelStainless Steel Extension Springs. 300 gradd stainless steel selection, including 303, 304 and 316.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- 302 Stainless springs not recommended for applications exceeding 260 Deg C (500 Deg F).
- 302 stainless steel is slightly magnetic.
Product Data

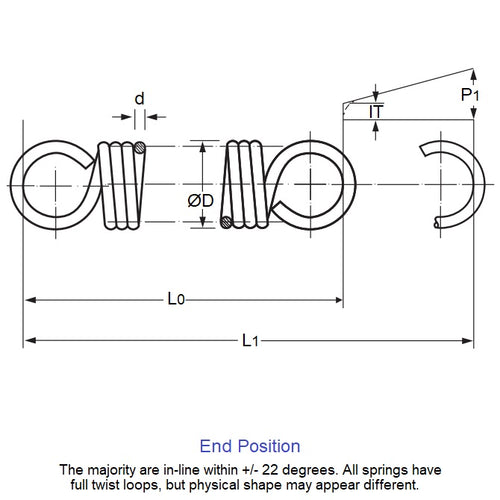

- OD (D0)
:
6.00
mm
(Equiv. 0.236 in.) - Approx. Overall Length (L0)
60
mm
(Equiv. 2.362 in.) - Wire Diameter (d)
0.550
mm
(Equiv. 0.022 in.) - Max. Extension (L1) 145.30 mm
- Spring Rate 0.06 N/mm
- Initial Tension (IT) 0.6 N
- Load at L1 6.08 N
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-AUA6-60
- CAUA660
