ACE1025MRS - Datasheet

ACE

Category Information

Shock Absorbers - Self-Compensating

Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 6.6 mm
      (Equiv. 0.26 in.)
    • Thread (T) M10x1.0
    • Length (A/F) 57.70 / 33.00 mm
      (Equiv. 2.272 in.)
    • Shaft Diameter (D) 3.30 mm
    • Effective Weight 0.68 - 2.27 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE-1025M
      • ACE1025M
      View full details

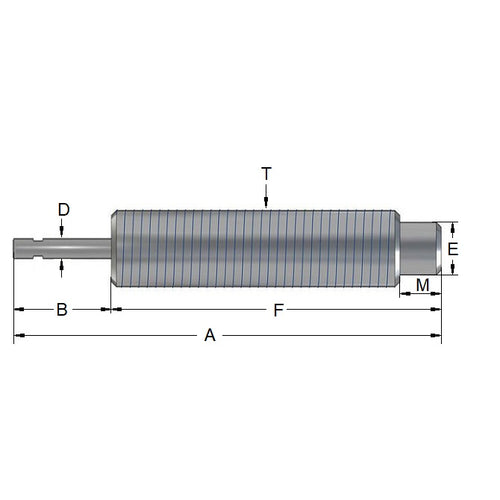

      ACE1025MRSDiagramACE1025MRSImage
