RP060-0500-Z - Datasheet
Brighton Best
Category Information

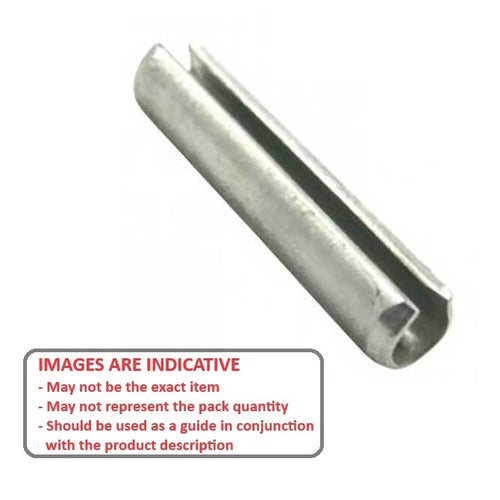

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
6.00
mm
(Equiv. 0.236 in.) - Length (L)
50.00
mm
(Equiv. 1.969 in.) - Free Diameter
6.60
mm
(Equiv. 0.26 in.) - Thickness (S) 1.20 mm
- Chamfer Length (cL) 0.40-1.60 mm
- Chamfer Diameter (cD) 5.8 mm
- Standard B18.8.4M
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPMZ-060-050
- Brighton Best V81435
- SPMZ060050
