PC064-1016-6 - Datasheet
ENQUIRE
Category Information

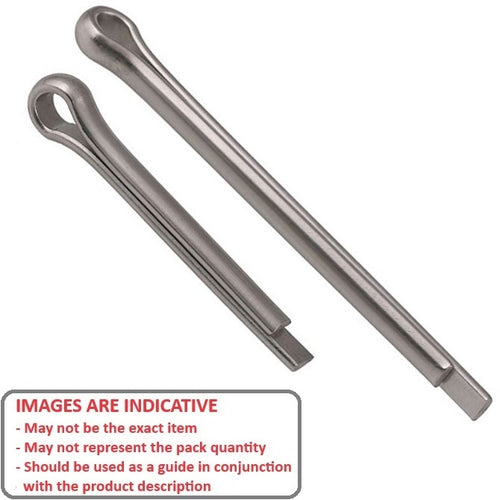

Pins - Split - Stainless SteelStainless Steel Split Pins. Longer lengths may be cut back to a suitable length.
- An expanded range may be available on special order. Please enquire.
- Hole size indicated is maximum for the pin to be effective.
- If the pin you require is not available, you may be able to use the next larger diameter so long as the pin is smaller than your hole size.
Product Data

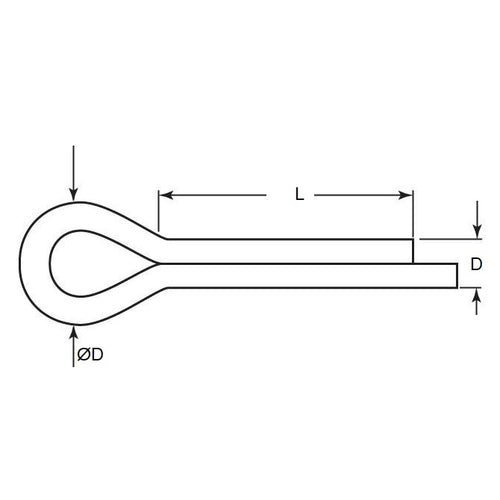

- Maximum Hole Diameter : 6.4 mm
- Nom. Pin Length (L) 102.0 mm
- Nom. Pin Diameter (D) 5.8 mm
- Nom. Overall Length 122 mm
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 98355A340
- NoCor® CPS16-250-4000/D
- NoCor® CPS16-250-4000-D
- CPS162504000/D
- CPS162504000D
