PWL-060-ST - Datasheet

MBA

Category Information

Ratchets and Pawls - Pawls

Pawls Ratchets and Pawls. Used with ratchets listed on this site.

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thickness (t) : 6 mm
    (Equiv. 0.236 in.)
  • Overall Length (L) 38 mm
    (Equiv. 1.496 in.)
  • Mounting Hole Diameter 5.00 mm H8
    (Equiv. 0.197 in.)
  • Swivel Radius (R) 8 mm
  • Hole Centre (c) 30
  • Type Type 2
  • Material Carbon Steel - Hardened 48-53 HRC
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • 6283K72
    • A1C14M03006
    View full details

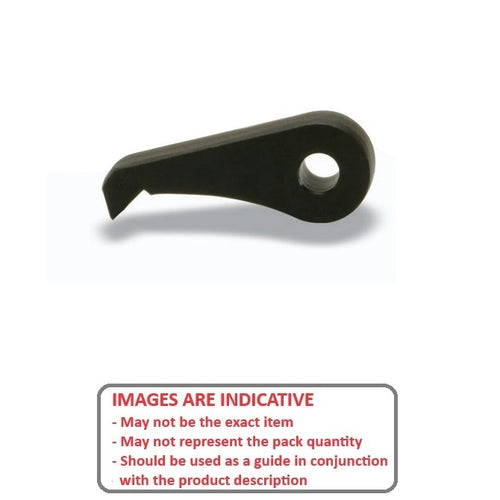

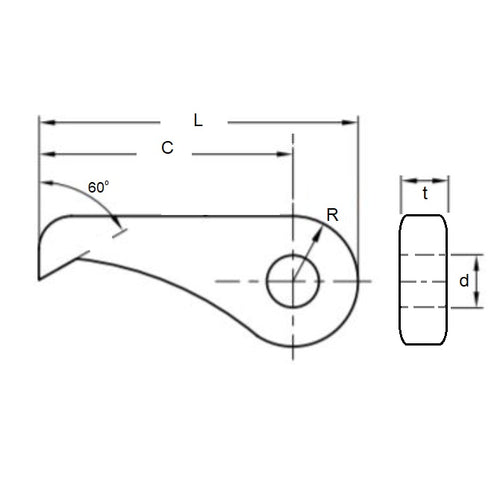

    PWL-060-STDiagramPWL-060-STImage
