Miniature Bearings Australia
LYP-R2-064-064-CZ - Datasheet
MBA
Category Information

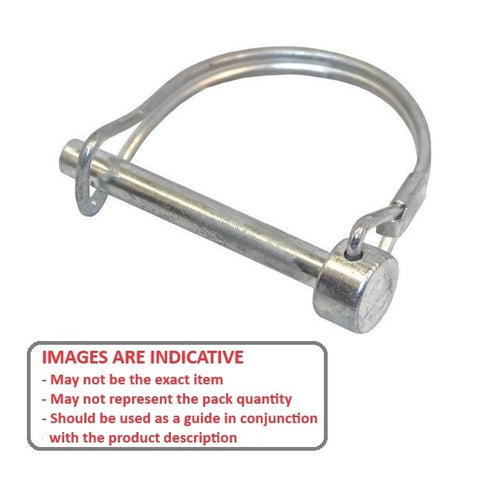

Pins - Wire Lock Lynch - Double Wire - Round - Carbon SteelCarbon Steel Round Double Wire Wire Lock Lynch Pins. Also known as snapper pins
Product Data

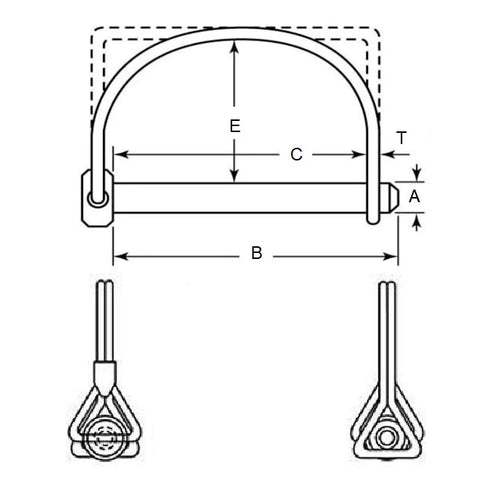

- Pin Diameter (A)
:
6.35
mm
- 0.051 / - 0.178
(Equiv. 0.25 in.) - Grip Length (C)
63.50
mm
+ 0.00 / - 6.35
(Equiv. 2.5 in.) - Wire Thickness (T)
2.3
mm
(Equiv. 0.091 in.) - Clearance To Wire (E) 41.3 mm
- Pin Length (B) 69.9 mm
- Weight Per Piece 39 g
- Finish Zinc Plated
- Material Carbon Steel Spring Wire Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SNAP-250-2500R
- WMG-65
- WMG65
- SNAP2502500R
