K-0635-0635-1905BO-C - Datasheet
ExaktKey
Category Information

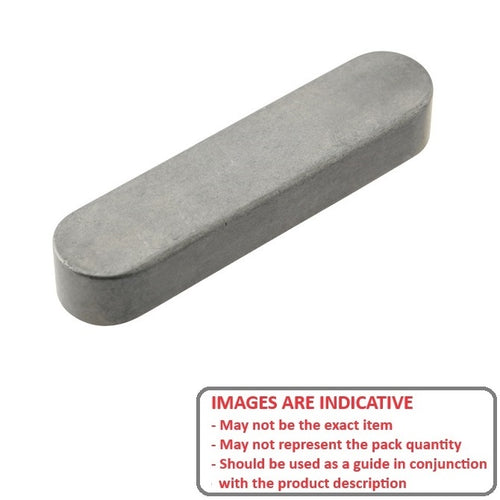

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
6.35
mm
+ 0.051 / - 0.00
(Equiv. 0.25 in.) - Height (h)
6.35
mm
+ 0.051 / - 0.00
(Equiv. 0.25 in.) - Length (L)
19.05
mm
+ / - 0.25
(Equiv. 0.75 in.) - Finish Plain
- Tolerance Type Oversized
- End Type B (Square Ends)
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- NoCor 3502500250-0750
- 98870A385
- 35025002500750
