PSP-064-057H-S2 - Datasheet
MBA
Category Information

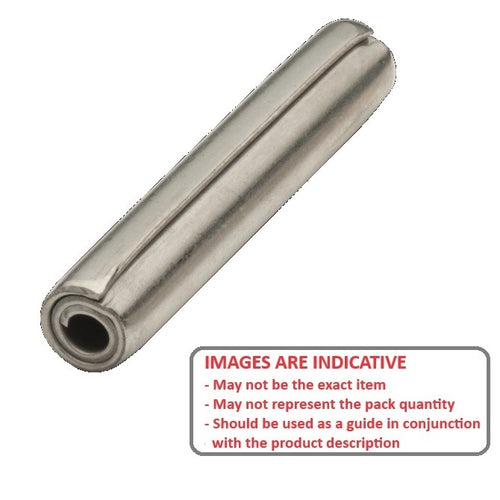

Pins - Coiled - Stainless - Heavy DutyHeavy Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
6.35
mm
(Equiv. 0.25 in.) - Length
57.15
mm
+/- 0.75
(Equiv. 2.25 in.) - Drill Size
6.35 - 6.50
mm
(Equiv. 0.25 in.) - Loose Diameter 6.55 - 6.81 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPC3P-250-2250H
- SPC3P2502250H
