CS-0635-5080-08-S1 - Datasheet

MBA

Category Information

Springs - Compression - Stainless Steel

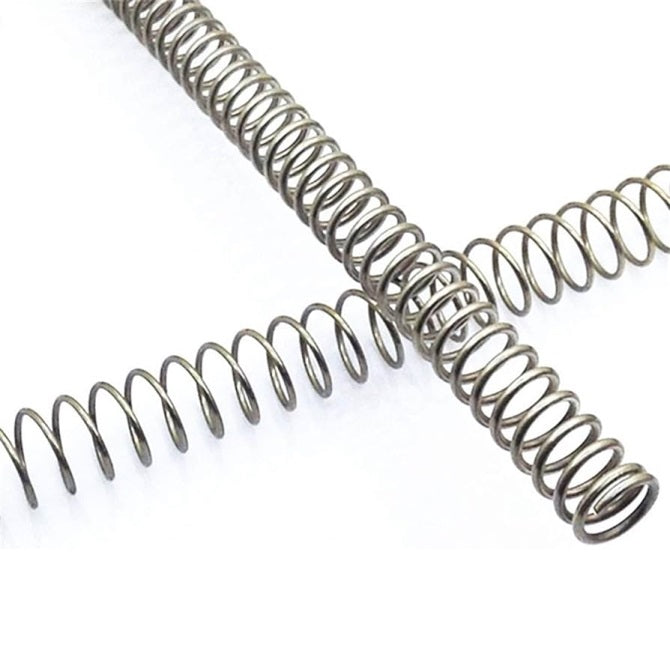

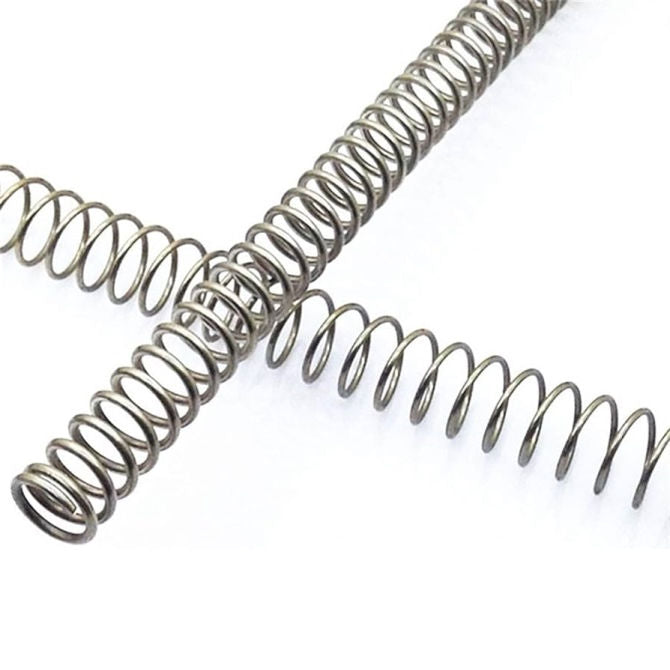

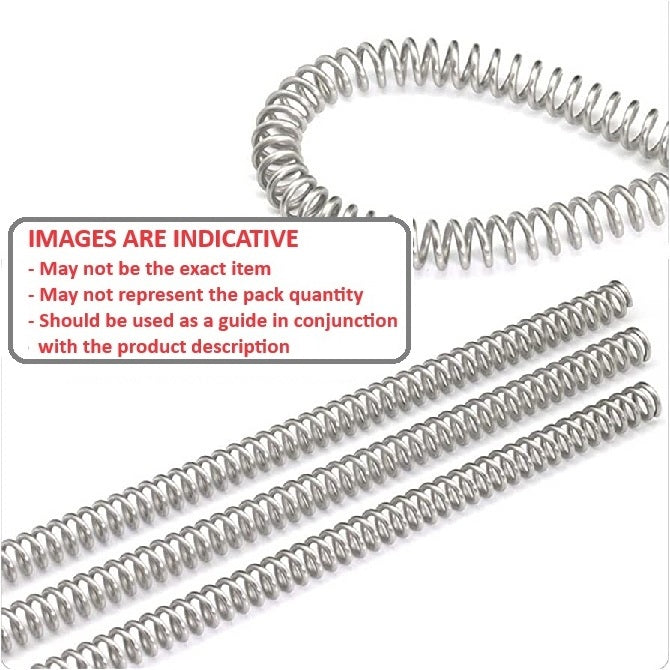

Stainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.

  • Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
  • Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
  • This category includes short and long lengths.
  • If the end type is important to your application please contact us for more information or a special quote.

Product Data

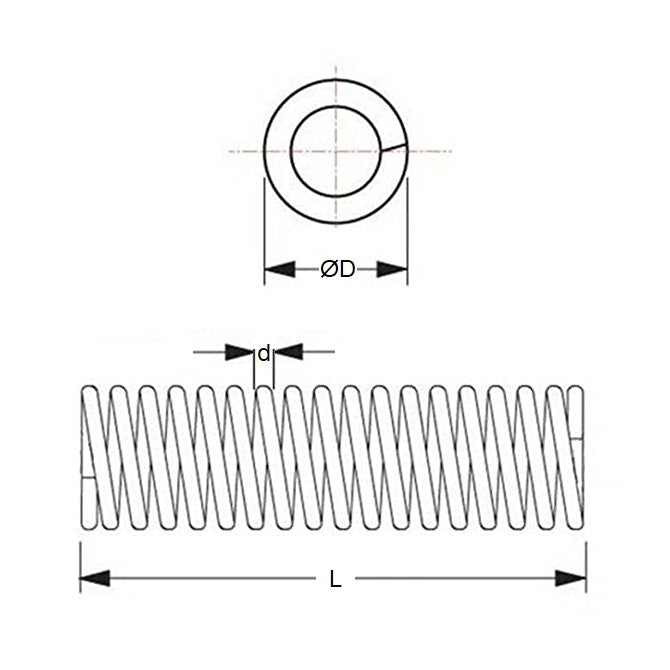

  • Spring OD (D0) : 6.35 mm
    (Equiv. 0.25 in.)
  • Free Length (L0) 508 mm
    (Equiv. 20 in.)
  • Wire Diameter (d) 0.81 mm
    (Equiv. 0.032 in.)
  • Rate (P/f) 1.8 N/mm
  • Approx. ID 4.7 mm
  • End Type Closed
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 9663K18
  • SSS213
  • SSS-213
