ECL-0053-0064-S15-KR - Datasheet
MBA
Category Information

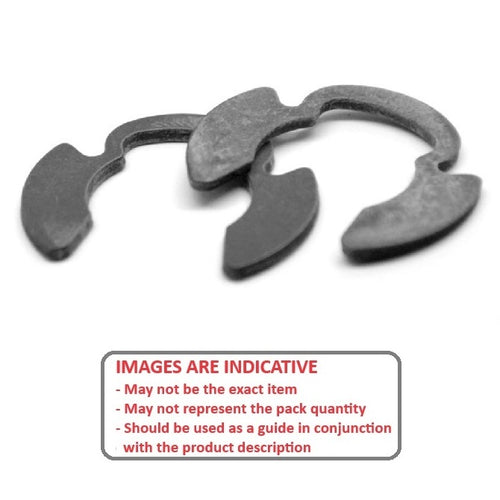

Retaining Rings - E-Clips - KlipringKlipring E-Clips Retaining Rings. Also known as Poodle Rings - Imperial - N1504 / NKP
- An expanded range may be available on special order. Please enquire.

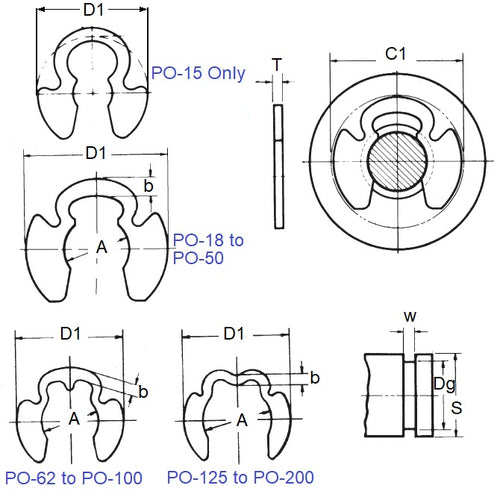

Product Data
- Minimum Rec. Shaft Dia (S)
:
6.35
mm
+ 2.54 / - 0.00
(Equiv. 0.25 in.) - Groove Dia. (Dg)
5.33
mm
+/- 0.152
(Equiv. 0.21 in.) - Clip Thickness (T)
0.89
mm
+/ - 0.052
(Equiv. 0.035 in.) - Clip OD Loose (D1) 12.24 mm
- Groove Width (W) 0.99 mm
- Maximum Rec. Shaft Dia (S) 8.89
- Loose Clip ID (A) 3.56 mm
- Min. Extension (n) 1.02
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5304-025-SS
- 94751A757
- NoCor PO-025-SS
- Rotor Clip PO-025-SS
- PO025SS
- 5304025SS
