ECL-0053-0064B-S15 - Datasheet
MBA
Category Information

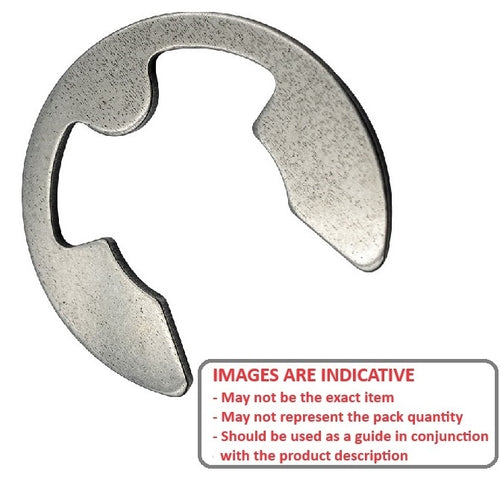

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Product Data
- Minimum Rec. Shaft Dia (S)
:
6.35
mm
+ 2.54 / - 0.00
(Equiv. 0.25 in.) - Groove Dia. (Dg)
5.33
mm
+/- 0.051
(Equiv. 0.21 in.) - Clip Thickness (T)
0.64
mm
+/ - 0.052
(Equiv. 0.025 in.) - Clip OD Loose (D1) 13.11 mm
- Groove Width (W) 0.74 mm
- Maximum Rec. Shaft Dia (S) 8.89
- Clip OD in groove (C1) 13.46 mm
- Additional Info RRA-160 Applicator
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- IRR 1200-025-SS
- Military 3215-025-SS
- Waldes 5144-025-SS
- 5144025SS
- 1200025SS
- 3215025SS
- N1540-025-SS
- N1540025SS
