ECL-0053-0064A-C - Datasheet
MBA
Category Information

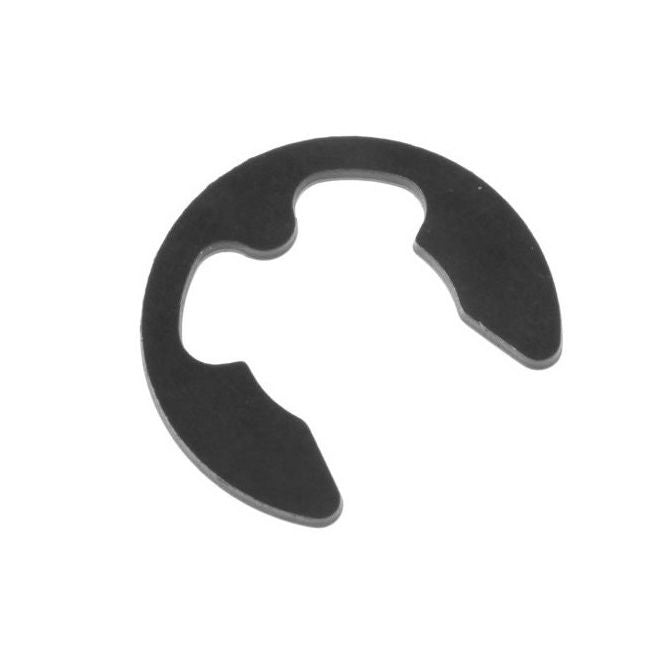

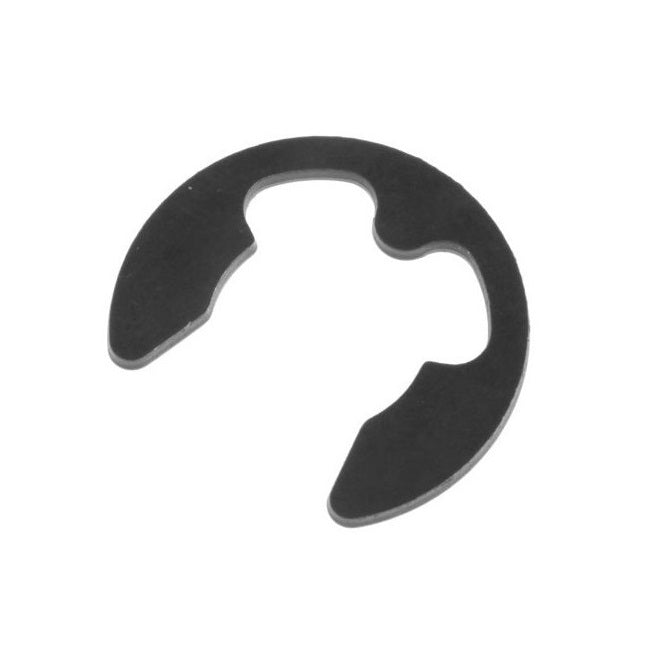

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data

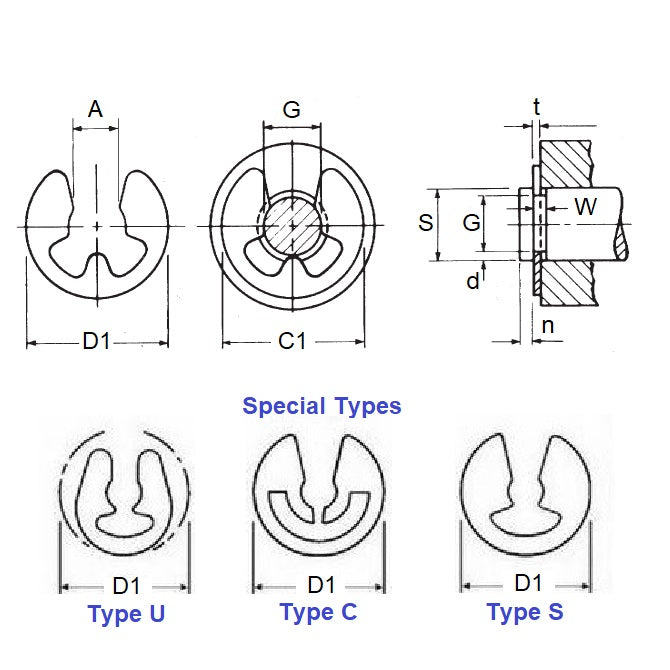

- Minimum Rec. Shaft Dia (S)
:
6.35
mm
+ 2.54 / - 0.00
(Equiv. 0.25 in.) - Groove Dia. (Dg)
5.33
mm
+ 0.076 / - 0.000
(Equiv. 0.21 in.) - Clip Thickness (T)
0.64
mm
+/ - 0.050
(Equiv. 0.025 in.) - Clip OD Loose (D1) 13.39 mm
- Groove Width (W) 0.74 mm
- Maximum Rec. Shaft Dia (S) 8.89
- Clip OD in groove (C1) 13.72 mm
- Min. Extension (n) 1.20
- Additional Info RRA-150 Applicator
- Standard MIL-16633
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- VI 205.0000.0003
- Waldes 5133-025
- 97431A300
- Ellison E-025
- NoCor E-025
- Rotorclip E-025
- Small Parts REE-4
- REE4
- E025
- 5133025
- N1500025
- N15000025
- N1500-0025
- N1500-025
