CLP-064-0472-CZ - Datasheet
MBA
Category Information

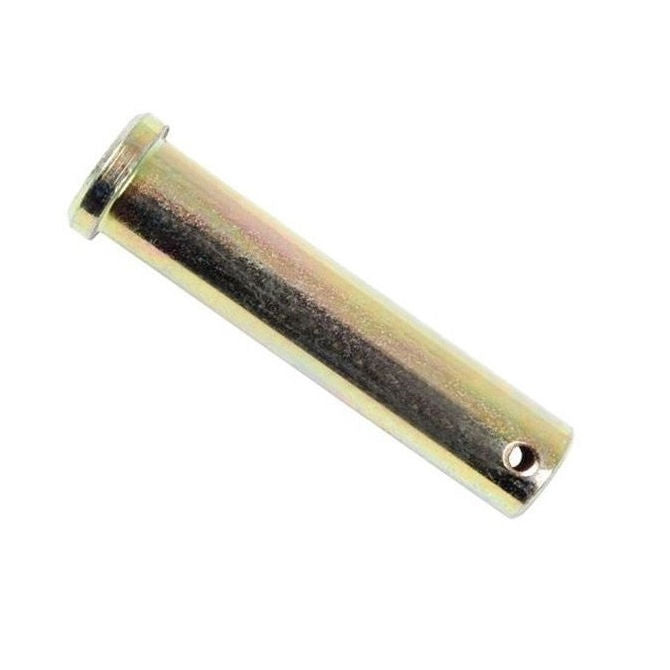

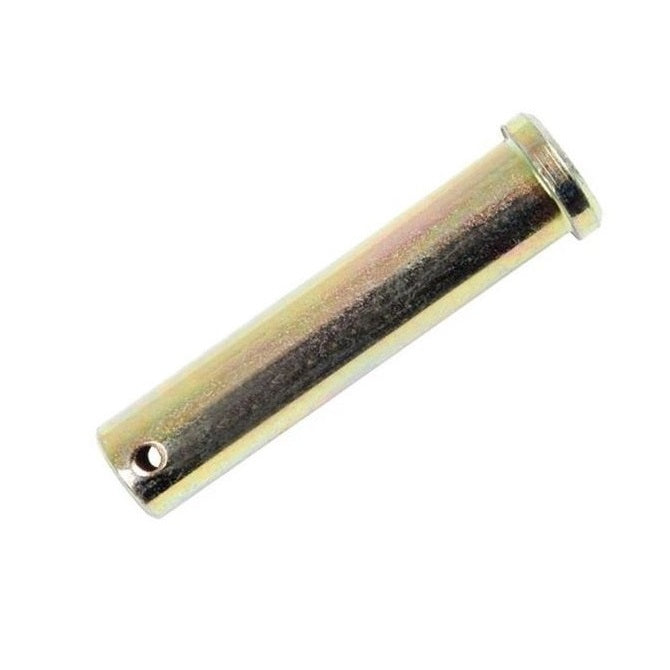

Pins - Clevis - Pin Locking - Zinc PlatedZinc Plated Pin Locking Clevis Pins. Match with a suitable R-Clip or Spilt Pin - pin size shown in listings
- In addition to retaining parts on a shaft or axle, clevis pins can also be used as light duty axles, spring holders or even fishing line weights.
- Sinc plated low carbon steel
Product Data

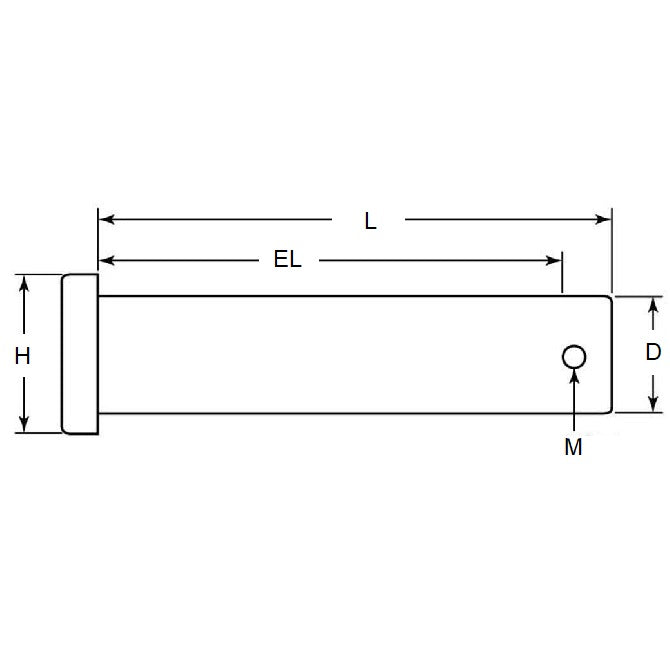

- Nominal Pin Diameter (D)
:
6.35
mm
- 0.05 / - 0.18
(Equiv. 0.25 in.) - Grip Length (EL)
47.23
mm
+ 0.51 / - 0.00
(Equiv. 1.859 in.) - Nom. Length (L)
50.80
mm
+ 0.51 / - 0.00
(Equiv. 2 in.) - Ret. Pin Dia. (M) 2.4 mm
- Suitable R-Clip RCL-020-057-Z
- Material Zinc Plated Low Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97245A147
- NoCor CLP-0250-2000
- NoCor CLPZ-0250-2000
- NoCor CLPZ-0250-2000/B
- CLP0640472Z
- CLP02502000
- CLPZ02502000/B
