LYP-R1-064-044-CZ - Datasheet
MBA
Category Information

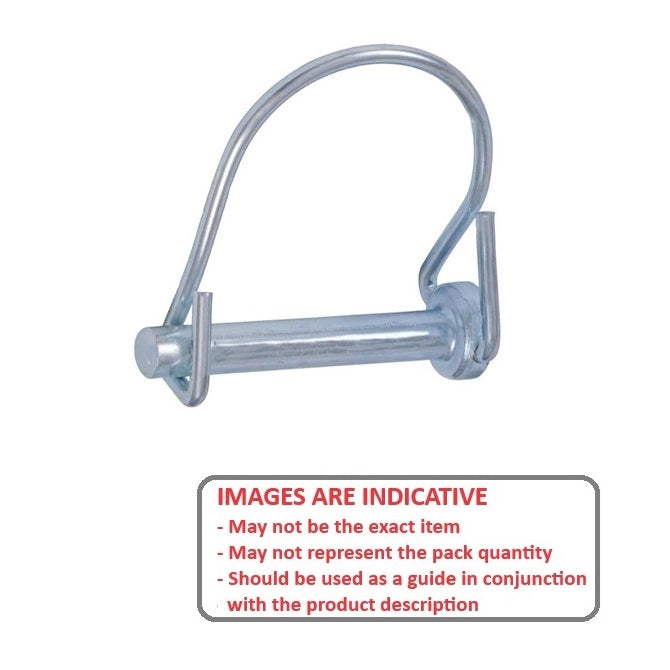

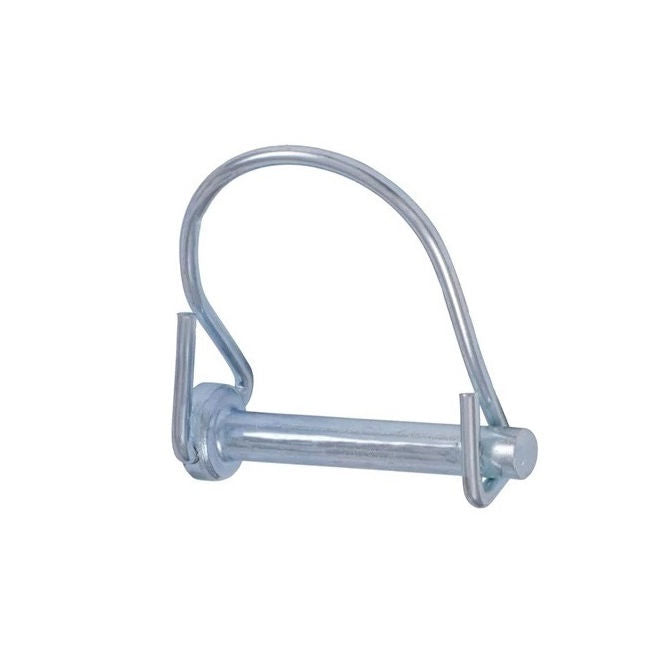

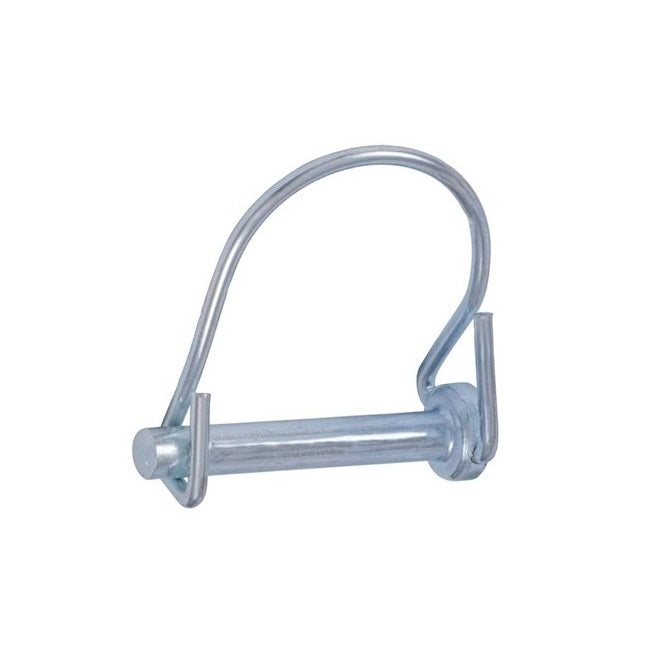

Pins - Wire Lock Lynch - Single Wire - Round Carbon SteelRound Carbon Steel Single Wire Wire Lock Lynch Pins. Also known as snapper pins
Product Data

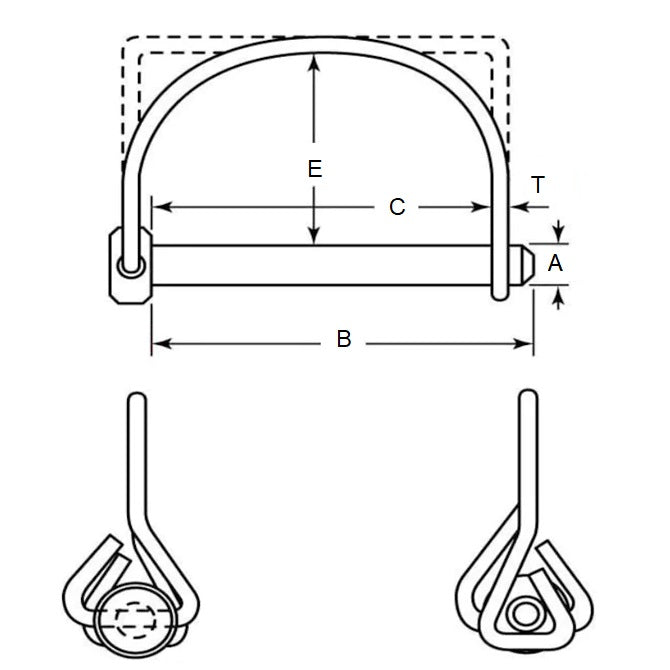

- Pin Diameter (A)
:
6.35
mm
- 0.051 / - 0.178
(Equiv. 0.25 in.) - Grip Length (C)
44.45
mm
+ 0.00 / - 6.35
(Equiv. 1.75 in.) - Wire Thickness (T)
3.0
mm
(Equiv. 0.118 in.) - Clearance To Wire (E) 41.3 mm
- Pin Length (B) 50.8 mm
- Weight Per Piece 33 g
- Finish Zinc Plated
- Material Carbon Steel Spring Wire Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SNIP-250-1750R
- CLP-570
- CLP570
- SNIP2501750R
