KW-064-110-249-S6 - Datasheet
ExaktKey
Category Information

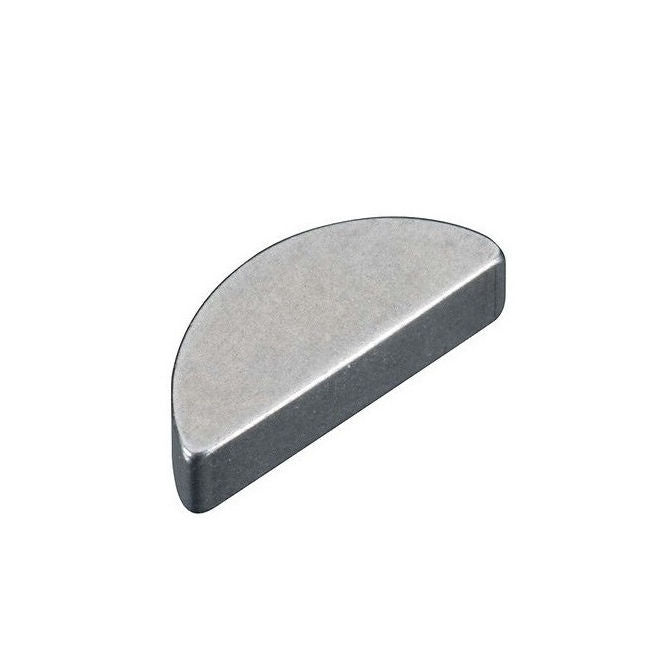

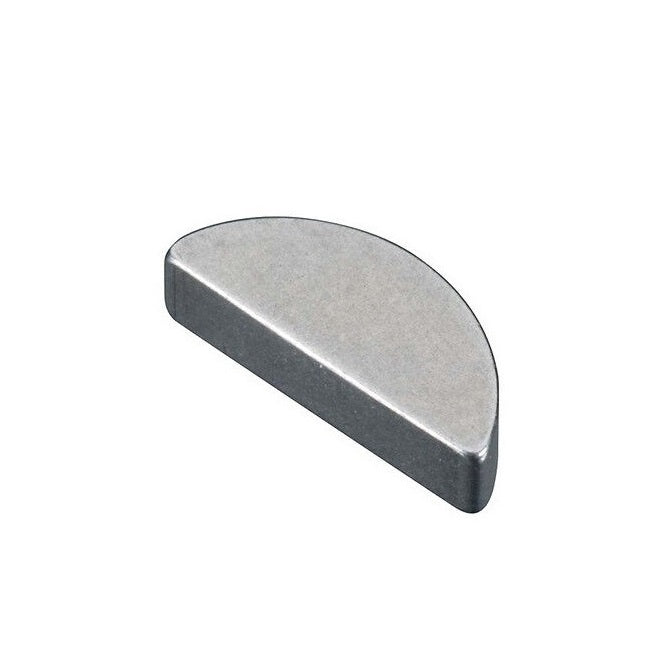

Keys - Woodruff - 316 Stainless Steel316 Stainless Steel Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
6.35
mm
+/- 0.025
(Equiv. 0.25 in.) - Approx. Height (H)
11.0
mm
+/- 0.250
(Equiv. 0.433 in.) - Approx. Length (L) 24.94 mm
- Basis Diameter (D) 25.40 mm
- Material Stainless Steel 316 (Similar to A4 or 18-10)
Product Compliance and Data
Additional Resources
Cross References
- ANSI 808-SS Marine
- 97940A170
- Key Size 15 Stainless Marine
- KW064254S6
